Part number:
2SC2216
Manufacturer:
Cnelectr
File Size:
319.55 KB
Description:
Npn transistor.

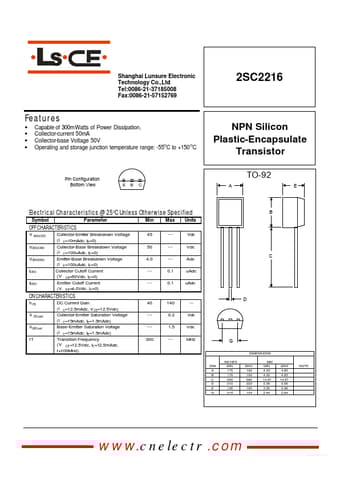

* Capable of 300mWatts of Power Dissipation. Collector-current 50mA Collector-base Voltage 50V Operating and storage junction temperature range: -55OC to +150 OC NPN Silicon Plastic-Encapsulate Transistor TO-92 Pin Configuration Bottom View E B C A E Ele
2SC2216
Cnelectr
319.55 KB
Npn transistor.
