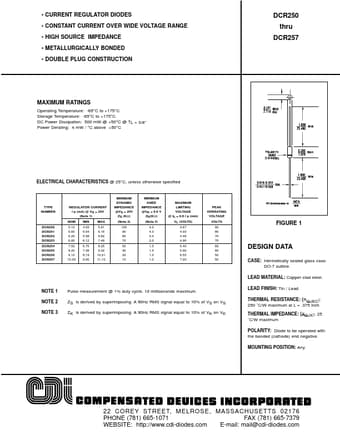

DCR252 - CURRENT REGULATOR DIODES
CURRENT REGULATOR DIODES CONSTANT CURRENT OVER WIDE VOLTAGE RANGE HIGH SOURCE IMPEDANCE METALLURGICALLY BONDED DOUBLE PLUG CONSTRUCTION DCR250 thru DCR257 MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500 mW @ +50°C @ TL = 3/8” Power Derating: 4 mW / °C above +50°C ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified TYPE NUMBER REGULATOR CURRENT l p (mA) @ VS = 25V
