DCR2060C28 Phase Control Thyristor

DCR2060C28 Description

Replaces DS6043-1 DCR2060C28 Phase Control Thyristor DS6043-2 June 2019 (LN38863) .

DCR2060C28 Features

* Double Side Cooling
* High Surge Capability KEY PARAMETERS VDRM IT(AV) ITSM dV/dt

DCR2060C28 Applications

* High Power Drives
* High Voltage Power Supplies
* Static Switches
* Higher dV/dt selections available VOLTAGE RATINGS Part and Ordering Number Repetitive Peak Voltages VDRM and VRRM V Conditions DCR2060C28 DCR2060C26 DCR2060C24 2800 2600 2400 Tvj = -40°C to 125°C, IDRM = IR

📥 Download Datasheet

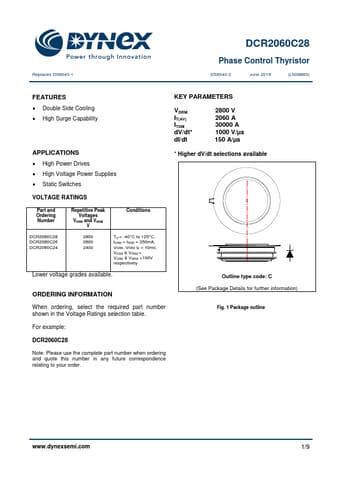

Preview of DCR2060C28 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DCR2060C28
Manufacturer
DYNEX
File Size
647.41 KB
Datasheet
DCR2060C28-DYNEX.pdf
Description
Phase Control Thyristor
