DCR2400B80, DCR2400B85 Datasheet - Dynex Semiconductor

DCR2400B80 Phase Control Thyristor

DCR2400B80 Features

* Double Side Cooling High Surge Capability KEY PARAMETERS VDRM IT(AV) ITSM dV/dt

* dI/dt 8500V 2370A 32500A 1500V/µs 300A/µs APPLICATIONS High Power Drives High Voltage Power Supplies Static Switches VOLTAGE RATINGS Part and Ordering Number Repetitive Peak Voltages VDRM and VRRM V 8500 8000 7500

DCR2400B85_DynexSemiconductor.pdf

This datasheet PDF includes multiple part numbers: DCR2400B80, DCR2400B85. Please refer to the document for exact specifications by model.

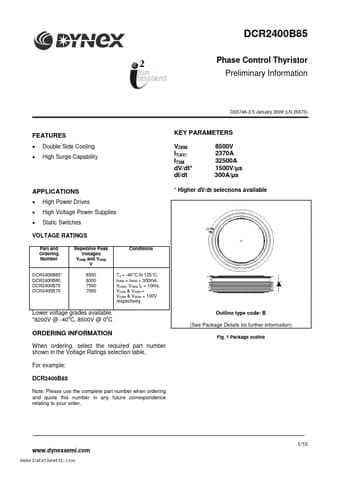

DCR2400B80 Datasheet Preview Page 2 DCR2400B80 Datasheet Preview Page 3

Datasheet Details

Part number:

DCR2400B80, DCR2400B85

Manufacturer:

Dynex Semiconductor

File Size:

233.58 KB

Description:

Phase control thyristor.

Note:

This datasheet PDF includes multiple part numbers: DCR2400B80, DCR2400B85.
Please refer to the document for exact specifications by model.
