DCR2440V34 Phase Control Thyristor

DCR2440V34 Description

Replaces DS6056-1 DCR2440V34 Phase Control Thyristor DS6056-2 June 2019 (LN38876) .

DCR2440V34 Features

* Double Side Cooling

DCR2440V34 Applications

* High Power Drives
* High Voltage Power Supplies
* Static Switches VOLTAGE RATINGS Part and Ordering Number Repetitive Peak Voltages VDRM and VRRM V Conditions DCR2440V34 DCR2440V32 DCR2440V30 DCR2440V28 3400 3200 3000 2800 Tvj = -40°C to 125°C, IDRM = IRRM = 300mA, VDRM, VRRM tp

📥 Download Datasheet

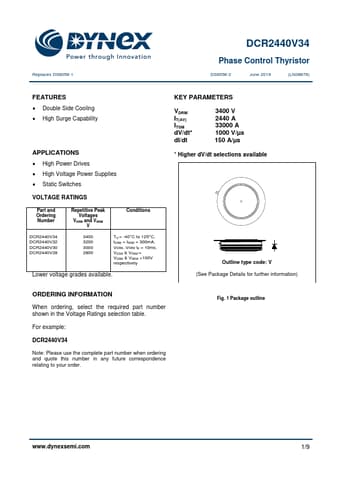

Preview of DCR2440V34 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DCR2440V34
Manufacturer
DYNEX
File Size
643.92 KB
Datasheet
DCR2440V34-DYNEX.pdf
Description
Phase Control Thyristor
