DCR2400B75, DCR2400B85, Phase Control Thyristor

www.DataSheet4U.com DCR2400B85 Phase Control Thyristor Preliminary Information DS5746-3.5 January 2009 (LN 26573) .

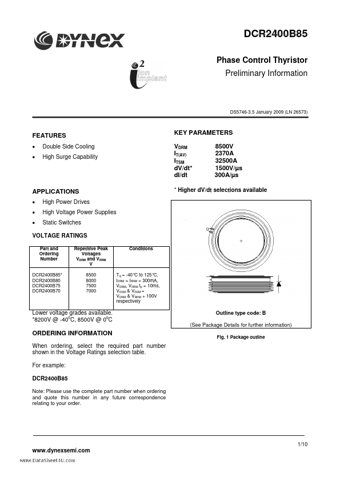

datasheet Preview Page 1 from Datasheet4u.com

DCR2400B85_DynexSemiconductor.pdf

DCR2400B75 Datasheet Preview — This datasheet PDF includes multiple part numbers: DCR2400B75, DCR2400B85. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DCR2400B75, DCR2400B85

Manufacturer:

Dynex Semiconductor

File Size:

233.58 KB

Description:

Phase Control Thyristor

Note:

This datasheet PDF includes multiple part numbers: DCR2400B75, DCR2400B85.
Please refer to the document for exact specifications by model.

Features

* Double Side Cooling High Surge Capability KEY PARAMETERS VDRM IT(AV) ITSM dV/dt

Applications

* High Power Drives High Voltage Power Supplies Static Switches VOLTAGE RATINGS Part and Ordering Number Repetitive Peak Voltages VDRM and VRRM V 8500 8000 7500 7000 Conditions
* Higher dV/dt selections available DCR2400B85
* DCR2400B80 DCR2400B75 DCR2400B70 Tvj = -40° C to 125° C, IDRM = IR
