DCR2150X14 Phase Control Thyristor

DCR2150X14 Description

Replaces DS6021-1 DCR2150X14 Phase Control Thyristor DS6021-2 June 2019 (LN38840) .

DCR2150X14 Features

* Double Side Cooling

DCR2150X14 Applications

* High Power Drives
* High Voltage Power Supplies
* Static Switches VOLTAGE RATINGS Part and Ordering Number Repetitive Peak Voltages VDRM and VRRM V Conditions DCR2150X14 DCR2150X12 DCR2150X10 DCR2150X08 DCR2150X06 1400 1200 1000 800 600 Tvj = -40°C to 125°C, IDRM = IRRM = 150mA,

📥 Download Datasheet

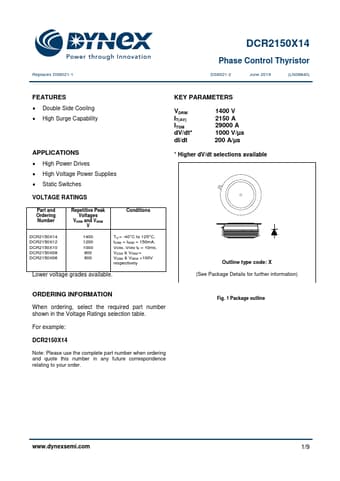

Preview of DCR2150X14 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DCR2150X14
Manufacturer
DYNEX
File Size
635.17 KB
Datasheet
DCR2150X14-DYNEX.pdf
Description
Phase Control Thyristor
