DCR2060X16 Phase Control Thyristor

DCR2060X16 Description

Source 2401 .

DCR2060X16 Features

* Double Side Cooling
* High Power Capability

DCR2060X16 Applications

* Traction Drives
* Motor Drives
* Industry Converters VOLTAGE RATINGS Part and Ordering Number DCR2060X16 DCR2060X14 DCR2060X12 DCR2060X10 Repetitive Peak Voltages VDRM and VRRM (V) 1600 1400 1200 1000 Conditions Tvj = -40°C to 125°C, IDRM = IRRM = 150mA, VDRM, VRRM tp =

📥 Download Datasheet

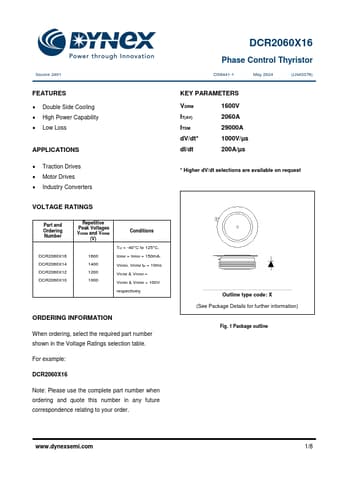

Preview of DCR2060X16 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DCR2060X16
Manufacturer
DYNEX
File Size
567.77 KB
Datasheet
DCR2060X16-DYNEX.pdf
Description
Phase Control Thyristor
