DCR254 Datasheet - Compensated Deuices Incorporated

DCR254 CURRENT REGULATOR DIODES

CURRENT REGULATOR DIODES CONSTANT CURRENT OVER WIDE VOLTAGE RANGE HIGH SOURCE IMPEDANCE METALLURGICALLY BONDED DOUBLE PLUG CONSTRUCTION DCR250 thru DCR257 MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500 mW @ +50°C @ TL = 3/8” Power Derating: 4 mW / °C above +50°C ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified TYPE NUMBER REGULATOR CURRENT l p (mA) @ VS = 25V.

DCR254 Datasheet (15.74 KB)

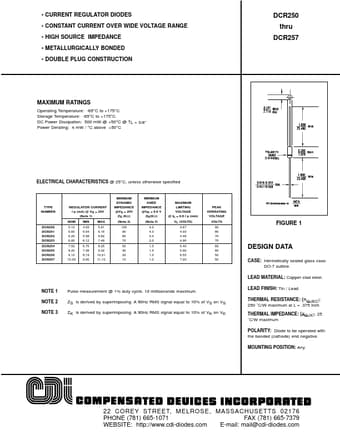

Preview of DCR254 PDF

Datasheet Details

Part number:

DCR254

Manufacturer:

Compensated Deuices Incorporated

File Size:

15.74 KB

Description:

Current regulator diodes.
