RP56LD - LOW VOLTAGE V.90/K56FLEX V.34/V.32 BIS MODEM DATA PUMPS

Conexant Systems

The RP56LD by Conexant Systems is a LOW VOLTAGE V.90/K56FLEX V.34/V.32 BIS MODEM DATA PUMPS. Below is the official datasheet preview.

📥 Download Datasheet

RP56LD LOW VOLTAGE V.90/K56FLEX V.34/V.32 BIS MODEM DATA PUMPS by Conexant Systems - Datasheet Preview — Official preview page of the **RP56LD** LOW VOLTAGE V.90/K56FLEX V.34/V.32 BIS MODEM DATA PUMPS datasheet (Conexant Systems).

Datasheet Details

Part number	RP56LD
Manufacturer	Conexant Systems
File Size	286.35 KB
Description	LOW VOLTAGE V.90/K56FLEX V.34/V.32 BIS MODEM DATA PUMPS
Datasheet	RP56LD_ConexantSystems.pdf
Additional preview pages of the RP56LD datasheet.

RP56LD Product details

Description

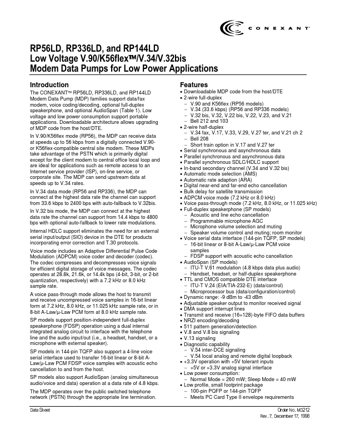

The MDP functional interface is illustrated in Figure 1. CLOCK CIRCUIT XTLI XTLO CRYSTAL CIRCUIT ~RLYA ~RLYB RINGD RXA TXA TELEPHONE LINE RIN TXA1 TXA2 MICM SPK SPKMD RS0-RS4 MICV/NC TELIN/NC SPKR TELOUT/NC TELEPHON

Features

Downloadable MDP code from the host/DTE.
2-wire full-duplex.
V.90 and K56flex (RP56 models).
V.34 (33.6 kbps) (RP56 and RP336 models).
V.32 bis, V.32, V.22 bis, V.22, V.23, and V.21.
Bell 212 and 103.
2-wire half-duplex.
V.34 fax, V.17, V.33, V.29, V.27 ter, and V.21 ch 2.
Bell 208.
Short train option in V.17 and V.27 ter.
Serial synchronous and asynchronous data.
Parallel synchronous an.
