RP56D Modem Data Pumps

The MDP functional interface is illustrated in Figure 1. Configurations and Rates The selectable MDP configurations, signaling rates, and data rates are listed in Table 2. 53'53'DQG53' CLKIN CLOCK CIRCUIT ~RDCLK TDCLK XTCLK TXD V.24 SERIAL DTE INTERFACE RXD ~RTS ~CTS ~DTR ~DSR ~RLSD.

53'53'DQG53' /RZ9ROWDJH9.IOH[™99ELV 0RGHP'DWD3XPSVIRU'HVNWRS$SSOLFDWLRQV Introduction The CONEXANT™ RP56D, RP336D, and RP144D Modem Data Pump (MDP) families support data/fax modem, voice coding/decoding, optional full-duplex speakerphone, and optional AudioSpan (Table 1). Low voltage and small size support desktop applications. Downloadable architecture allows upgrading of MDP code from the host/DTE. In V.90/K56flex mode (RP56), the MDP can receive data at speed.

RP56D Features

* Downloadable MDP code from the host/DTE

* 2-wire full-duplex

* V.90 and K56flex (RP56 models)

* V.34 (33.6 kbps) (RP56 and RP336 models)

* V.32 bis, V.32, V.22 bis, V.22, V.23, and V.21

* Bell 212 and 103

* 2-wire half-duplex

* V.34

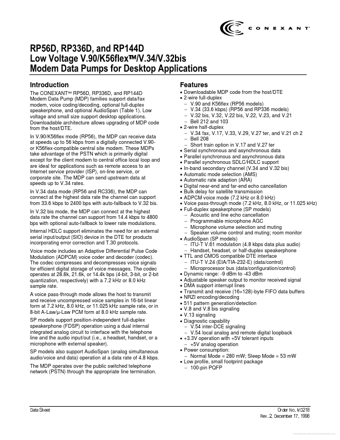

RP56D Datasheet (259.60 KB)

RP56D Datasheet Preview — Preview of RP56D PDF

Datasheet Details

Part number:

RP56D

Manufacturer:

Conexant

File Size:

259.60 KB

Description:

Modem data pumps.
