RP505K - 1A Step-down DC/DC Converters

Datasheet Summary

Features

  • Supply Current Typ. 40µA (VFM mode with no-load).
  • Standby Current Max. 5µA.
  • Input Voltage Range 2.3V to 5.5V (Absolute maximum rating: 6.5V).
  • Output Voltage Range (Ver. A,B) 0.6V to 3.3V (Adjustable in 0.1V steps. Note: As for 0.8V or less, input voltage range is limited. ) (Ver. C) 0.8V to 3.3V.
  • Output Voltage Accuracy (Ver. A,B) ±1.5% (VOUT≥1.2V), ±18mV (VOUT.

📥 Download Datasheet

Datasheet preview – RP505K

Datasheet Details

Part number RP505K
Manufacturer Nisshinbo
File Size 2.16 MB
Description 1A Step-down DC/DC Converters
Datasheet download datasheet RP505K Datasheet

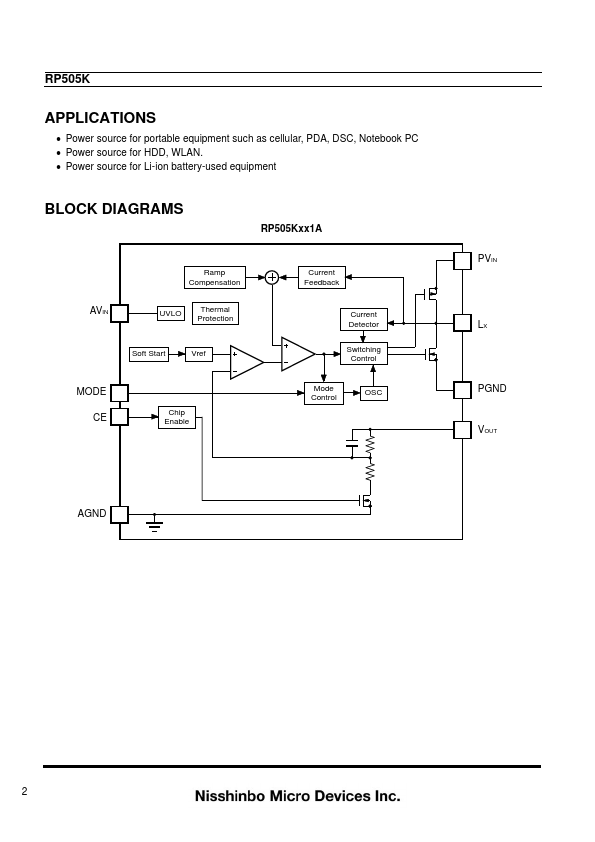

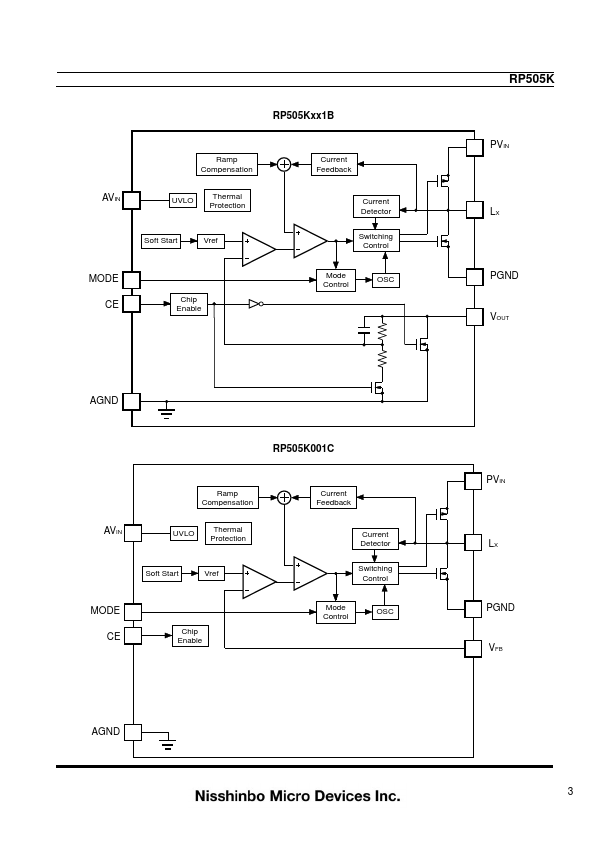

Additional preview pages of the RP505K datasheet.

📁 Similar Datasheet

  • RP500K - PWM/VFM Step-down DC/DC Converter (RICOH)
  • RP500L - PWM/VFM Step-down DC/DC Converter (RICOH)
  • RP500N - PWM/VFM Step-down DC/DC Converter (RICOH)
  • RP506K - PWM/VFM Step-down DC/ DC Converter (RICOH)
  • RP506K001C - PWM/VFM Step-down DC/ DC Converter (RICOH)
  • RP506K001C - 2A PWM/VFM Step-down DC/DC Converter (RICOH)
  • RP506K001F - PWM/VFM Step-down DC/ DC Converter (RICOH)
  • RP506K001F - 2A PWM/VFM Step-down DC/DC Converter (RICOH)
  • RP506K061D - 2A PWM/VFM Step-down DC/DC Converter (RICOH)
  • RP506K061E - 2A PWM/VFM Step-down DC/DC Converter (RICOH)
Other Datasheets by Nisshinbo
  • RP509N - 0.5A/1A PWM/VFM Step-down DC/DC Converter
  • RP509Z - 0.5A/1A PWM/VFM Step-down DC/DC Converter
  • RP511H - Ultra-low Quiescent Current 100mA Buck DC/DC Converter
  • RP511K - Ultra-low Quiescent Current 100mA Buck DC/DC Converter
  • RP511Z - Ultra-low Quiescent Current 100mA Buck DC/DC Converter
  • RP512H - Ultra-low Quiescent Current 300mA Buck DC/DC Converter
  • RP512K - Ultra-low Quiescent Current 300mA Buck DC/DC Converter
  • RP512Z - Ultra-low Quiescent Current 300mA Buck DC/DC Converter

Full PDF Text Transcription

Click to expand full text

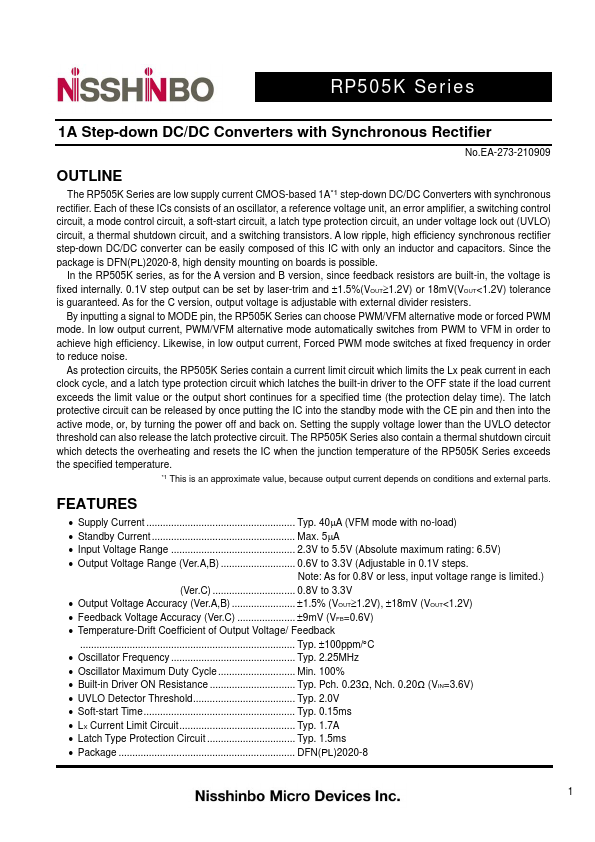

RP505K Series 1A Step-down DC/DC Converters with Synchronous Rectifier No.EA-273-210909 OUTLINE The RP505K Series are low supply current CMOS-based 1A*1 step-down DC/DC Converters with synchronous rectifier. Each of these ICs consists of an oscillator, a reference voltage unit, an error amplifier, a switching control circuit, a mode control circuit, a soft-start circuit, a latch type protection circuit, an under voltage lock out (UVLO) circuit, a thermal shutdown circuit, and a switching transistors. A low ripple, high efficiency synchronous rectifier step-down DC/DC converter can be easily composed of this IC with only an inductor and capacitors. Since the package is DFN(PL)2020-8, high density mounting on boards is possible.
