RP509N - 0.5A/1A PWM/VFM Step-down DC/DC Converter

Nisshinbo

📥 Download Datasheet

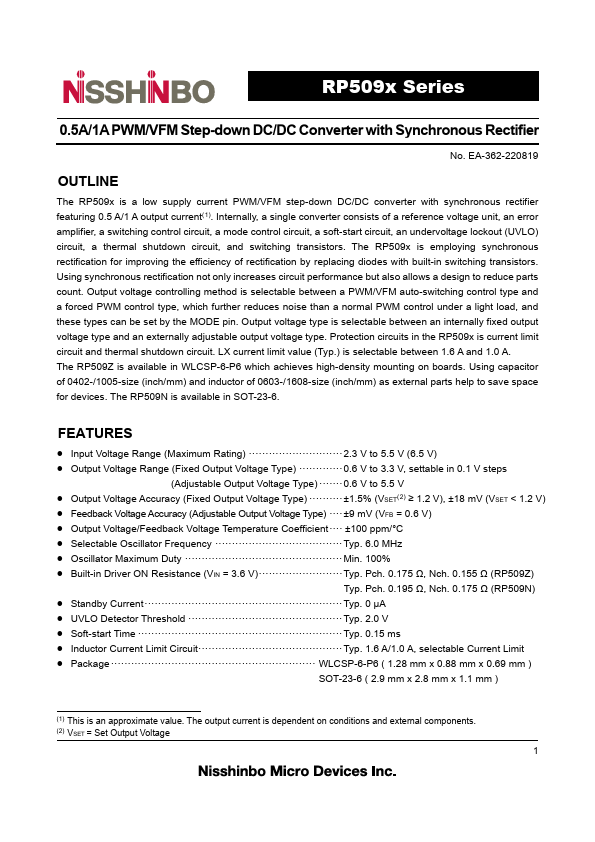

RP509N Datasheet Preview — Preview of RP509N PDF

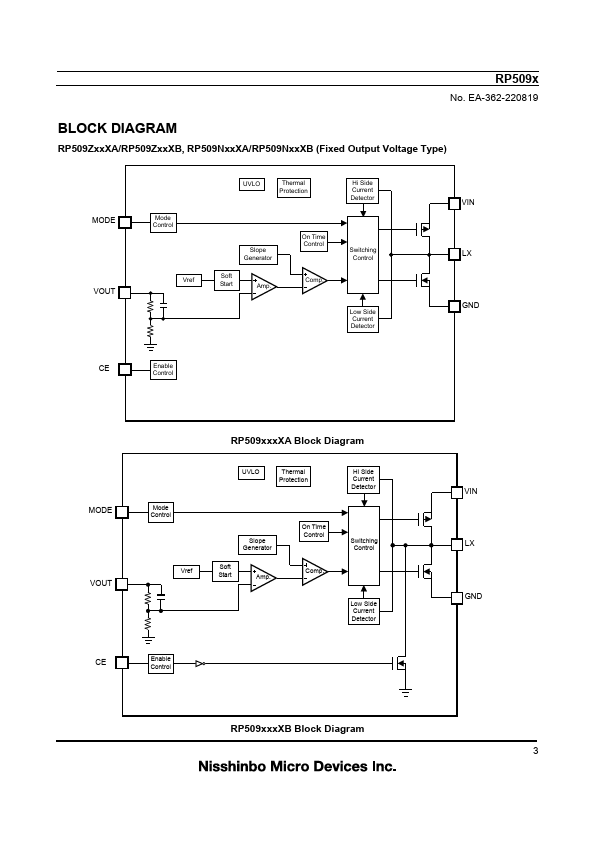

datasheet Preview Page 2

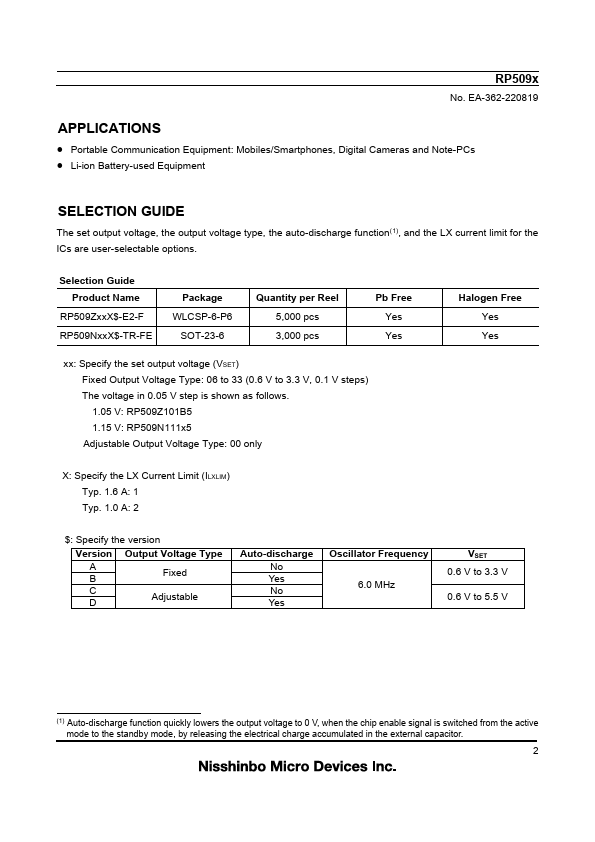

datasheet Preview Page 3

Datasheet Details

Part number	RP509N
Manufacturer	Nisshinbo
File Size	1.76 MB
Description	0.5A/1A PWM/VFM Step-down DC/DC Converter
Datasheet	RP509N-Nisshinbo.pdf

RP509N Product details

Features

Input Voltage Range (Maximum Rating).
2.3 V to 5.5 V (6.5 V).
Output Voltage Range (Fixed Output Voltage Type).
0.6 V to 3.3 V, settable in 0.1 V steps (Adjustable Output Voltage Type).
0.6 V to 5.5 V.
Output Voltage Accuracy (Fixed.
