RP512H - Ultra-low Quiescent Current 300mA Buck DC/DC Converter

This page provides the datasheet information for the RP512H, a member of the RP512Z Ultra-low Quiescent Current 300mA Buck DC/DC Converter family.

Datasheet Summary

Description

Pin No.

📥 Download Datasheet

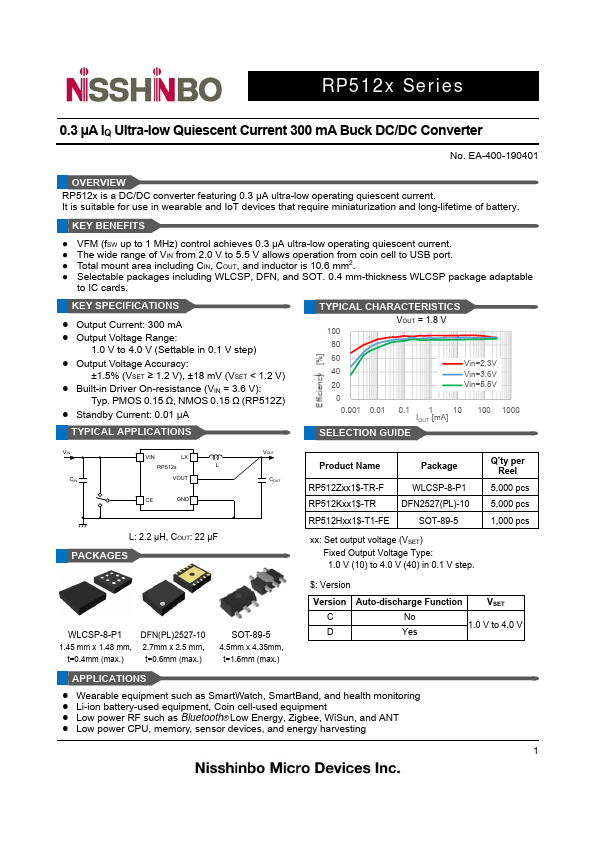

Datasheet preview – RP512H

Datasheet Details

Part number RP512H
Manufacturer Nisshinbo
File Size 2.03 MB
Description Ultra-low Quiescent Current 300mA Buck DC/DC Converter
Datasheet download datasheet RP512H Datasheet

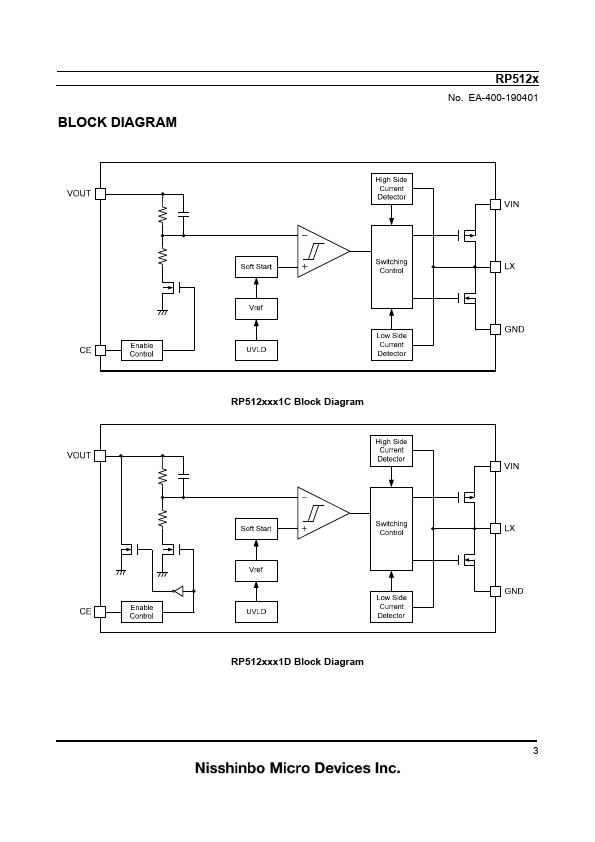

Additional preview pages of the RP512H datasheet.

📁 Similar Datasheet

  • RP500K - PWM/VFM Step-down DC/DC Converter (RICOH)
  • RP500L - PWM/VFM Step-down DC/DC Converter (RICOH)
  • RP500N - PWM/VFM Step-down DC/DC Converter (RICOH)
  • RP506K - PWM/VFM Step-down DC/ DC Converter (RICOH)
  • RP506K001C - PWM/VFM Step-down DC/ DC Converter (RICOH)
  • RP506K001C - 2A PWM/VFM Step-down DC/DC Converter (RICOH)
  • RP506K001F - PWM/VFM Step-down DC/ DC Converter (RICOH)
  • RP506K001F - 2A PWM/VFM Step-down DC/DC Converter (RICOH)
  • RP506K061D - 2A PWM/VFM Step-down DC/DC Converter (RICOH)
  • RP506K061E - 2A PWM/VFM Step-down DC/DC Converter (RICOH)
Other Datasheets by Nisshinbo
  • RP512K - Ultra-low Quiescent Current 300mA Buck DC/DC Converter
  • RP512Z - Ultra-low Quiescent Current 300mA Buck DC/DC Converter
  • RP511H - Ultra-low Quiescent Current 100mA Buck DC/DC Converter
  • RP511K - Ultra-low Quiescent Current 100mA Buck DC/DC Converter
  • RP511Z - Ultra-low Quiescent Current 100mA Buck DC/DC Converter
  • RP515K - Ultra-low Power Consumption 300mA Buck DC/DC Converter
  • RP515Z - Ultra-low Power Consumption 300mA Buck DC/DC Converter
  • RP519Z - 0.5A/1A PWM/VFM Step-down DC/DC Converter

Full PDF Text Transcription

Click to expand full text
RP512x Series 0.3 µA IQ Ultra-low Quiescent Current 300 mA Buck DC/DC Converter No. EA-400-190401 OVERVIEW RP512x is a DC/DC converter featuring 0.3 μA ultra-low operating quiescent current. It is suitable for use in wearable and IoT devices that require miniaturization and long-lifetime of battery. KEY BENEFITS ● VFM (fSW up to 1 MHz) control achieves 0.3 μA ultra-low operating quiescent current. ● The wide range of VIN from 2.0 V to 5.5 V allows operation from coin cell to USB port. ● Total mount area including CIN, COUT, and inductor is 10.6 mm2. ● Selectable packages including WLCSP, DFN, and SOT. 0.4 mm-thickness WLCSP package adaptable to IC cards. KEY SPECIFICATIONS  Output Current: 300 mA  Output Voltage Range: 1.0 V to 4.0 V (Settable in 0.
