| Part number | RP512K, RP512Z |
|---|---|
| Manufacturer | Nisshinbo |
| File Size | 2.03 MB |

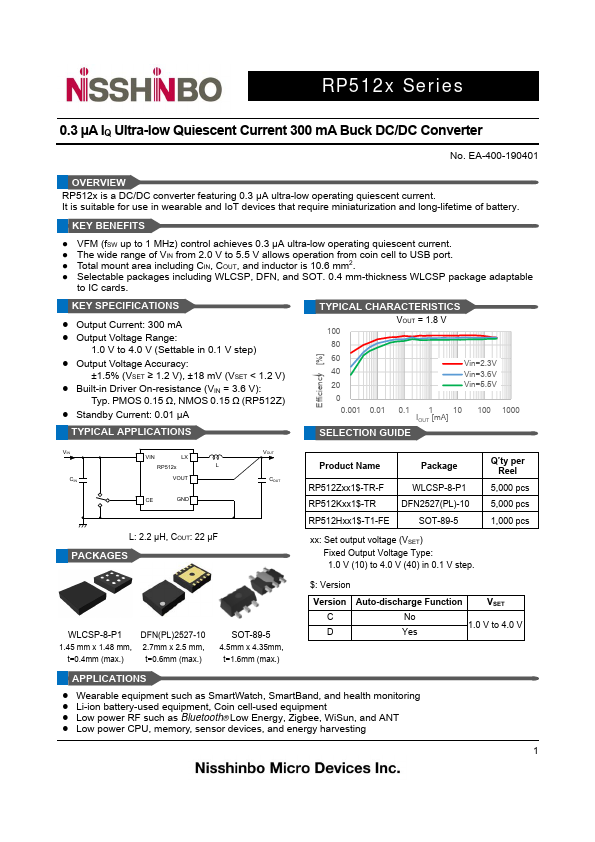

| Description | Ultra-low Quiescent Current 300mA Buck DC/DC Converter |
| Datasheet |
 RP512Z-Nisshinbo.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: RP512K, RP512Z. Please refer to the document for exact specifications by model. |
3 2 1 Top View Bottom View 3 2 1 A BC C B A RP512Z (WLCSP-8-P1) Pin Configuration Top View 10 9 8 7 6 Bottom View 6 7 8 9 10 (1) 5 4 12345 54321 1 RP512K [DFN(PL)2527-10] Pin Configuration 1 2 3 RP512H (SOT-89-5) Pin Configuration RP512Z Pin Description Pin No.Symbol A1 VIN B1 VIN C1 LX A2 VOUT C2 GND A3 CE B3 GND C3 GND Description Input Pin Input Pin Switching Pin Output voltage Pin Ground Pin Chip Enable Pin (Active-high) Ground Pin Ground Pin
