RP506K001C - PWM/VFM Step-down DC/ DC Converter

This page provides the datasheet information for the RP506K001C, a member of the RP506K PWM/VFM Step-down DC/ DC Converter family.

Datasheet Summary

Description

RP506K: DFN(PLP)2527-10

7 Pin No.

7 Symbol PVIN AVIN PG CE MODE TSS VOUT/ VFB AGND LX PGND PVIN Input Voltage Pin 8 AVIN Input Voltage Pin 8 Power Good Pin Description Chip Enable Pin (“H” active) Mode Control Pin (“H” Forced PWM Control, “L” PWM/ VFM Auto Sw

Features

  • Supply Current.
  • Typ. 48µA (VFM mode, Lx at no load).
  • Standby Current.

📥 Download Datasheet

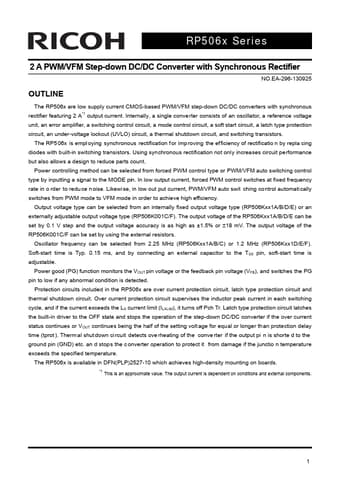

Datasheet preview – RP506K001C

Datasheet Details

Part number RP506K001C
Manufacturer RICOH
File Size 1.65 MB
Description PWM/VFM Step-down DC/ DC Converter
Datasheet download datasheet RP506K001C Datasheet
Additional preview pages of the RP506K001C datasheet.

📁 Similar Datasheet

  • RP505K - 1A Step-down DC/DC Converters (Nisshinbo)
  • RP509N - 0.5A/1A PWM/VFM Step-down DC/DC Converter (Nisshinbo)
  • RP509Z - 0.5A/1A PWM/VFM Step-down DC/DC Converter (Nisshinbo)
  • RP511H - Ultra-low Quiescent Current 100mA Buck DC/DC Converter (Nisshinbo)
  • RP511K - Ultra-low Quiescent Current 100mA Buck DC/DC Converter (Nisshinbo)
  • RP511Z - Ultra-low Quiescent Current 100mA Buck DC/DC Converter (Nisshinbo)
  • RP512H - Ultra-low Quiescent Current 300mA Buck DC/DC Converter (Nisshinbo)
  • RP512K - Ultra-low Quiescent Current 300mA Buck DC/DC Converter (Nisshinbo)
  • RP512Z - Ultra-low Quiescent Current 300mA Buck DC/DC Converter (Nisshinbo)
  • RP515K - Ultra-low Power Consumption 300mA Buck DC/DC Converter (Nisshinbo)
Other Datasheets by RICOH

Full PDF Text Transcription

Click to expand full text
RP506K Series 2A*1 PWM/VFM Step-down DC/ DC Converter with Synchronous Rectifier NO.EA-296-120525 OUTLINE The RP506K Series are low supply current CMOS-based PWM/VFM step-down DC/ DC converters with synchronous rectifier featuring 2A*1 output current. Internally, a single IC consists of an oscillator, a reference voltage unit, an error amplifier, a switching control circuit, a mode control circuit, a soft start circuit, a latch protection circuit, an under-voltage lockout (UVLO) circuit, a thermal shutdown circuit, and switching transistors. By simply using an inductor and capacitors as external components, without connecting any diode, a low ripple and high efficiency synchronous rectifier step-down DC/ DC converter can be easily configured.
