RP506K Datasheet, Converter, RICOH

RP506K Features

• Converter
• Supply Current

PDF File Details

Part number:

RP506K

Manufacturer:

RICOH

File Size:

1.65MB

Download:

📄 Datasheet

Description:

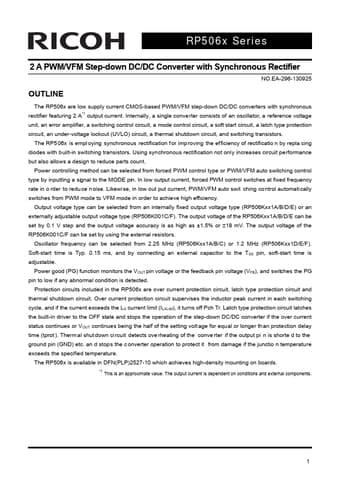

Pwm/vfm step-down dc/ dc converter. RP506K: DFN(PLP)2527-10

7 Pin No. 1 2 3 4 5 6 7 8 9 10

7 Symbol PVIN AVIN PG CE MODE TSS VOUT/ VFB AGND LX PGND PVI

RP506K Application

• Applications ower Dissipation, Standard Land Pattern and High Wattage Land Pattern, please refer to Package Information. ABSOLUTE MAXIMUM RATINGS El
