PC1353 - TV AUDIO PROCESSING CIRCUIT

PC1353 Description

www.DataSheet4U.com PC1353 .
LINEAR INTEGRATED CIRCUIT TV AUDIO PROCESSING CIRCUIT Contek PC1353 is designed for TV SIF signal amplification and audio power amplification purpos.

PC1353 Features

* Wide operating supply voltage,9V ~ 18V When VCC=18V,RL=8 When VCC=12V,RL=8
* Linear volume control
* Low harmonic distortion
* Differential peak detector
* Attenuation circuit for noise suppression(Typical80dB) W ,Output is 2.4W(17"TV) W ,Output is 1.2W(12"TV) DIP-14H APPLICA

📥 Download Datasheet

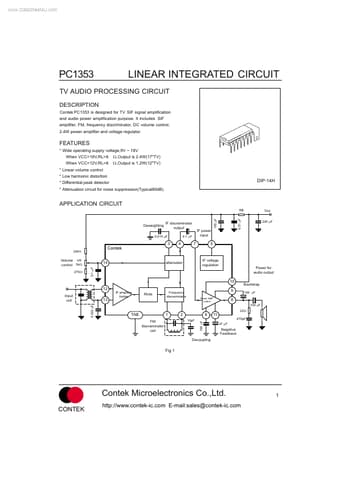

Preview of PC1353 PDF
