PC1366 - LINEAR INTEGRATED CIRCUIT

PC1366 Description

UTC PC1366 LINEAR INTEGRATED CIRCUIT B/W TV VIF PROCESSING CIRCUIT .
UTC PC1366 is designed for B/W TV VIF processing purpose.

PC1366 Features

* High input sensitivity Typ.30dBµ.
* Key and peak controllable AGC.
* Operating voltage down to 7V.
* Wide video bandwidth suitable for modulation IF of 4.5, 5.5,6.0,6.5 MHZ.
* Differential input implied with easy used with SAW
* Low external part count. DIP-14H BLOCK DIAGRAM Rf

📥 Download Datasheet

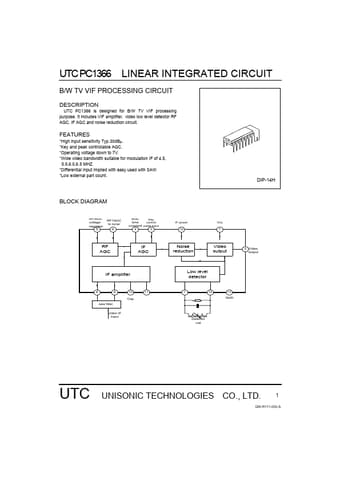

Preview of PC1366 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PC1366
Manufacturer
Unisonic Technologies
File Size
95.98 KB
Datasheet
PC1366_UnisonicTechnologies.pdf
Description
LINEAR INTEGRATED CIRCUIT
