PC1316 - DUAL CHANNEL AUDIO POWER AMPLIFIER

PC1316 Description

UTCPC1316 LINEAR INTEGRATED CIRCUIT DUAL CHANNEL AUDIO POWER AMPLIFIER .
The UTC PC1316 is a monolithic integrated circuit, designed for the audio amplifier part in tape recorders and radio. Wide operating vo.

PC1316 Features

* Wide operating voltage( 3V~16V)
* Low quiescent current
* Low harmonic distortion
* Large output power( 2W, maximum)
* Fine ripple rejection characteristic BLOCK DIAGRAM GND 14 CH2 CH2 CH2 Compen Input Feedback Sation Vcc 13 12 11 10 CH2 CH2 Boot Strap Output 98 DIP-14H AMP 2

📥 Download Datasheet

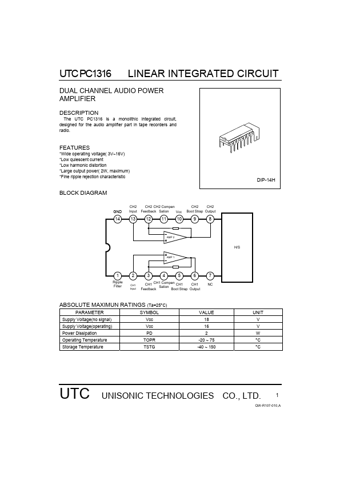

Preview of PC1316 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PC1316
Manufacturer
Unisonic Technologies
File Size
205.88 KB
Datasheet
PC1316-UnisonicTechnologies.pdf
Description
DUAL CHANNEL AUDIO POWER AMPLIFIER
