KT1300 - 4PIN LSOP PHOTOTRANSISTOR

KT1300 Description

cosmo KT1300 Series 4PIN LSOP PHOTOTRANSISTOR PHOTOCOUPLER z .
The KT1300 series consist of two infrared emitting diodes, connected in inverse parallel, optically coupled to a photo darlington detector.

KT1300 Features

* a high current transfer ratio, low coupling capacitance and high isolation voltage. z Features 1. Halogen free 2. Pb free and RoHS compliant 3. High isolation voltage 5000Vrms 4. Opaque type,SMD low profile 4 lead package 5. High current transfer ratio (CTR=2000%TYP. @ IF=±1mA, VCE=2V ) 6. 8mm outer

KT1300 Applications

* Programmable logic controllers

📥 Download Datasheet

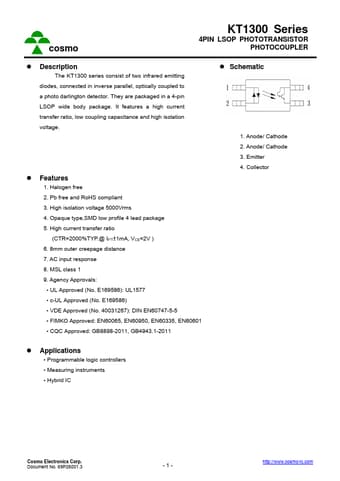

Preview of KT1300 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KT1300
Manufacturer
Cosmo
File Size
215.62 KB
Datasheet
KT1300-Cosmo.pdf
Description
4PIN LSOP PHOTOTRANSISTOR
