CY24119

MediaClock 27-MHz VCXO Clock Generator

CY24119 Features

* Low-jitter, high-accuracy output

* VCXO with analog adjust

* 3.3V operation Part Number CY24119 CY24119-1 Outputs 1 1 Benefits

* Meets critical timing requirements in complex system designs

* Large ± 150 ppm range, better linearity Input Frequency Range 27-

CY24119 General Description

CY24119 Absolute Maximum Conditions Parameter VDD TS TJ Storage Description Supply Voltage Temperature[1] Junction Temperature Electrostatic Discharge 2 Min.

*0.5

*65 Max. 7.0 125 125 Unit V °C °C kV Recommended Operating Conditions Parameter VDD, AVDD TA CLOAD fREF tPU Descriptio.

CY24119 Datasheet (264.55 KB)

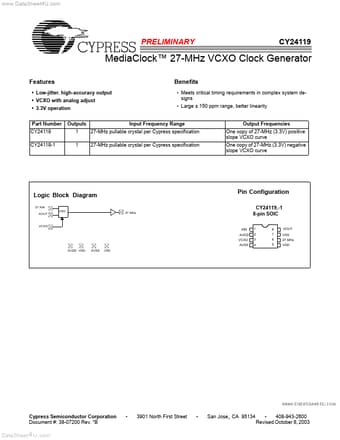

Preview of CY24119 PDF

Datasheet Details

Part number:

CY24119

Manufacturer:

Cypress Semiconductor

File Size:

264.55 KB

Description:

Mediaclock 27-mhz vcxo clock generator.
