CY24293 Datasheet, Generator, Cypress

CY24293 Features

  • Generator
  • 25 MHz crystal or clock input
  • Two sets of differential PCI-Express clocks
  • Pin selectable output frequencies
  • Supports HCSL compatible output level

PDF File Details

Part number:

CY24293

Manufacturer:

Cypress

File Size:

196.20kb

Download:

📄 Datasheet

Description:

Two outputs pci-express clock generator. CY24293 is a two output PCI-Express clock generator device intended for networking applications. The device takes 25 MHz crystal or c

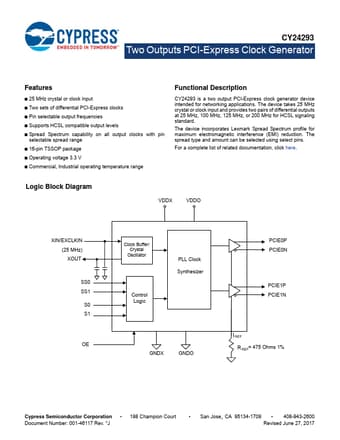

Datasheet Preview: CY24293 📥 Download PDF (196.20kb)
Page 2 of CY24293 Page 3 of CY24293

CY24293 Application

  • Applications The device takes 25 MHz crystal or clock input and provides two pairs of differential outputs at 25 MHz, 100 MHz, 125 MHz, or 200 MHz
