CY24212, MediaClock MPEG Clock Generator

PRELIMINARY CY24212 MediaClock™ MPEG Clock Generator with VCXO .

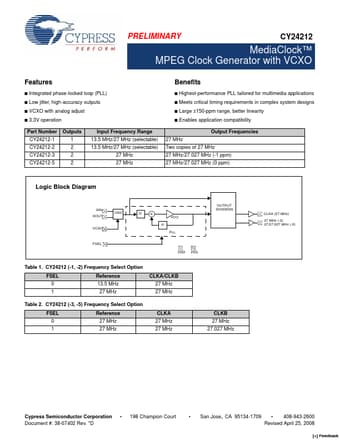

datasheet Preview Page 1 from Datasheet4u.com

CY24212_CypressSemiconductor.pdf

CY24212 Datasheet Preview — Preview of CY24212 PDF

Datasheet Details

Part number:

CY24212

Manufacturer:

Cypress Semiconductor

File Size:

171.52 KB

Description:

MediaClock MPEG Clock Generator

Features

* Benefits
* Integrated phase-locked loop (PLL)
* Low jitter, high-accuracy outputs
* VCXO with analog adjust
* 3.3V operation

Applications

* Meets critical timing requirements in complex system designs
* Large ±150-ppm range, better linearity
* Enables application compatibility Part Number CY24212-1 CY24212-2 CY24212-3 CY24212-5 Outputs 1 2 2 2 Input Frequency Range 13.5 MHz/27 MHz (selectable) 13.5 MHz/27 MHz (selectabl
