CY2304NZ - Four Output PCI-X and General Purpose Buffer

Datasheet Summary

Description

The CY2304NZ is a low-cost buffer designed to distribute high-speed clocks for PCI-X and other applications.

The device operates at 3.3 V and outputs can run up to 140 MHz.

For a complete list of related documentation, click here.

Features

  • One input to four output buffer/driver.
  • General-purpose or PCI-X clock buffer.
  • Buffers all frequencies from DC to 140 MHz.
  • Output-to-output skew less than 100 ps.
  • Space-saving 8-pin TSSOP package.
  • 3.3 V operation.
  • 60 ps typical output-output skew Functional.

📥 Download Datasheet

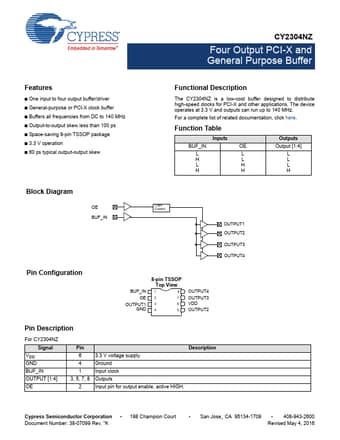

Datasheet preview – CY2304NZ

Datasheet Details

Part number CY2304NZ
Manufacturer Cypress
File Size 350.73 KB
Description Four Output PCI-X and General Purpose Buffer
Datasheet download datasheet CY2304NZ Datasheet
