CY2304 - 3.3V Zero Delay Buffer

Datasheet Summary

Description

The CY2304 is a 3.3 V zero delay buffer designed to distribute high-speed clocks in PC, workstation, datacom, telecom, and other high performance applications.

The part has an on-chip phase-locked loop (PLL) that locks to an input clock presented on the REF pin.

Features

  • Zero input-output propagation delay, adjustable by capacitive load on FBK input.
  • Multiple configurations.
  • Multiple low-skew outputs.
  • 10 MHz to 133 MHz operating range.
  • 90 ps typical peak cycle-to-cycle jitter at 15 pF, 66 MHz.
  • Space-saving 8-pin 150-mil small outline integrated circuit (SOIC) package.
  • 3.3 V operation.
  • Industrial temperature available Functional.

📥 Download Datasheet

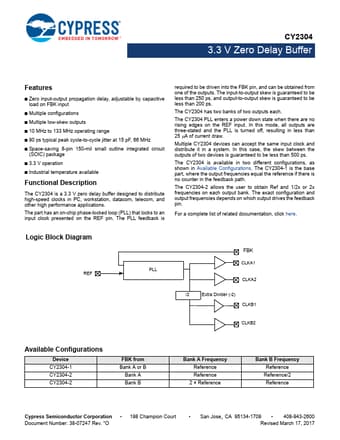

Datasheet preview – CY2304

Datasheet Details

Part number CY2304
Manufacturer Cypress
File Size 338.74 KB
Description 3.3V Zero Delay Buffer
Datasheet download datasheet CY2304 Datasheet
