CY2300 Datasheet, Multiplier, Cypress Semiconductor

CY2300 Features

  • Multiplier
  • 10 MHz to 166.67 MHz output operating range
  • Four-multiplier configuration
  • Single PLL architecture
  • Phase aligned outputs
  • Low jitter, hig

PDF File Details

Part number:

CY2300

Manufacturer:

Cypress Semiconductor

File Size:

347.89kb

Download:

📄 Datasheet

Description:

Phase-aligned clock multiplier. The CY2300 is a four output 3.3 V phase-aligned system clock designed to distribute high-speed clocks in PC, workstation, datacom, te

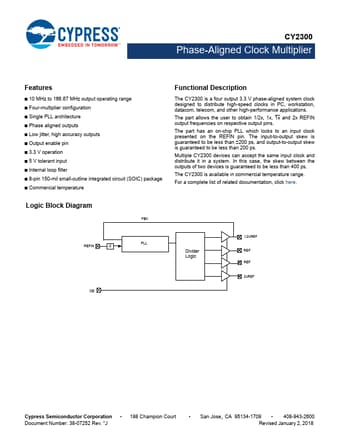

Datasheet Preview: CY2300 📥 Download PDF (347.89kb)
Page 2 of CY2300 Page 3 of CY2300

CY2300 Application

  • Applications The part allows the user to obtain 1/2x, 1x, 1x and 2x REFIN output frequencies on respective output pins. The part has an on-chip PLL
