CY22392, CY22392-1 Datasheet - Cypress

CY22392 Automotive Flash Programmable Clock Generator

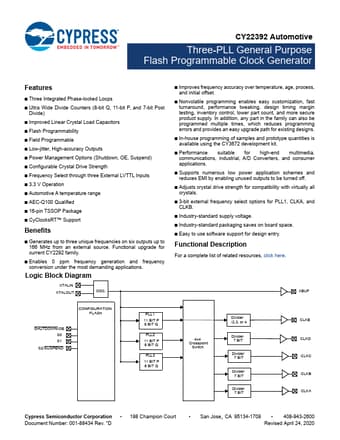

For a complete list of related resources, click here. XBUF SHUTDOWN/OE S0 S1 S2/SUSPEND CONFIGURATION FLASH PLL1 11 BIT P 8 BIT Q PLL2 11 BIT P 8 BIT Q PLL3 11 BIT P 8 BIT Q 4x4 Crosspoint Switch Divider /2,3, or 4 Divider 7 BIT Divider 7 BIT Divider 7 BIT Divider 7 BIT CLKE CLKD CLKC CLKB CLK.

CY22392 Features

* Three Integrated Phase-locked Loops

* Ultra Wide Divide Counters (8-bit Q, 11-bit P, and 7-bit Post Divide)

* Improved Linear Crystal Load Capacitors

* Flash Programmability

* Field Programmable

* Low-jitter, High-accuracy Outputs

* Power Management Options (Shutdown,

CY22392-1-Cypress.pdf

CY22392 Datasheet Preview — This datasheet PDF includes multiple part numbers: CY22392, CY22392-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CY22392, CY22392-1

Manufacturer:

Cypress

File Size:

287.73 KB

Description:

Automotive flash programmable clock generator.

Note:

This datasheet PDF includes multiple part numbers: CY22392, CY22392-1.
Please refer to the document for exact specifications by model.
