CY24141-3, MediaClock Graphics Clock Generator

www.DataSheet4U.com PRELIMINARY CY24141-3 MediaClock™ Graphics Clock Generator .
Reference Input Voltage Supply Analog Voltage Supply Frequency Select Pin (Internal Pull-down Resistor) Analog Ground Output Ground No Connect No Conn.

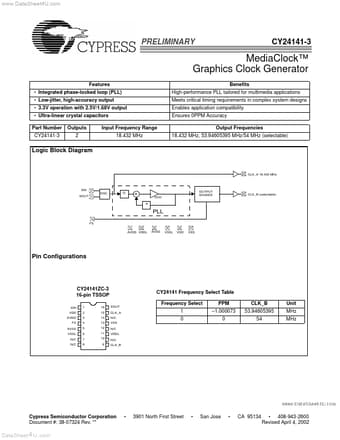

datasheet Preview Page 1 from Datasheet4u.com

CY24141-3_CypressSemiconductor.pdf

CY24141-3 Datasheet Preview — Preview of CY24141-3 PDF

Datasheet Details

Part number:

CY24141-3

Manufacturer:

Cypress Semiconductor

File Size:

209.62 KB

Description:

MediaClock Graphics Clock Generator

Features

* Integrated phase-locked loop (PLL)
* Low-jitter, high-accuracy output
* 3.3V operation with 2.5V/1.68V output
* Ultra-linear crystal capacitors Part Number CY24141-3 Outputs 2 Input Frequency Range 18.432 MHz Benefits High-performance PLL tailored for multimedia app

Applications

* Meets critical timing requirements in complex system designs Enables application compatibility Ensures 0PPM Accuracy Output Frequencies 18.432 MHz, 53.94605395 MHz/54 MHz (selectable) Logic Block Diagram CLK_A 18.432 MHz XIN OSC XOUT Q Φ VCO P OUTPUT DIVIDER CLK_B (selectable) PLL FS AVDD VDDL
