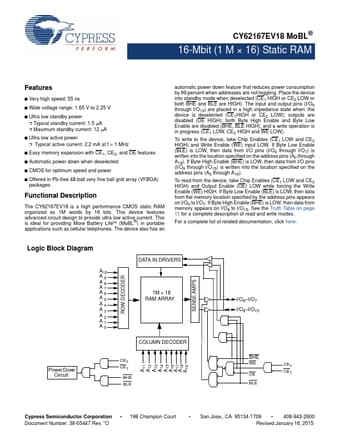

CY62167EV18 - 16-Mbit (1M x 16) Static RAM

Cypress Semiconductor

Datasheet Details

Part number	CY62167EV18
Manufacturer	Cypress Semiconductor
File Size	294.75 KB
Description	16-Mbit (1M x 16) Static RAM
Datasheet	CY62167EV18_CypressSemiconductor.pdf

The CY62167EV18 is a high performance CMOS static RAM organized as 1M words by 16 bits.

Very high speed: 55 ns.
Wide voltage range: 1.65 V to 2.25 V.
Ultra low standby power.
Typical standby current: 1.5 A.
Maximum standby current: 12 A.
Ultra low active power.
Typical active current: 2.2 mA at f = 1 MHz.
Easy memory expansion with CE1, CE2, and OE features.
Automatic power down when deselected.
CMOS for optimum speed and power.
Offered in Pb-free 48-ball very fine ball grid array (VFBGA) packages Functional.
