CY62146DV30 - 4M Bit Static RAM

Datasheet Summary

Description

of read and write modes.

The CY62146DV30 is available in a 48-ball VFBGA, 44-pin TSOPII packages.

The CY62146DV30 is a high-performance CMOS static RAM organized as 256K words by 16 bits.

Features

  • Very high speed: 45 ns.
  • Wide voltage range: 2.20V.
  • 3.60V.
  • Pin-compatible with CY62146CV30.
  • Ultra-low active power.
  • Typical active current: 1.5 mA @ f = 1 MHz.
  • Typical active current: 8 mA @ f = fmax.
  • Ultra low standby power.
  • Easy memory expansion with CE, and OE features.
  • Automatic power-down when deselected.
  • CMOS for optimum speed/power.
  • Packages offered 48-ball BGA and 44-pin TSOPII.

📥 Download Datasheet

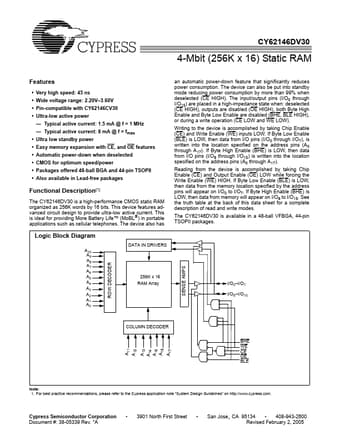

Datasheet preview – CY62146DV30

Datasheet Details

Part number CY62146DV30
Manufacturer Cypress
File Size 394.75 KB
Description 4M Bit Static RAM
Datasheet download datasheet CY62146DV30 Datasheet
Additional preview pages of the CY62146DV30 datasheet.

📁 Similar Datasheet

  • CY62146CV18 - 256K x 16 Static RAM (Cypress Semiconductor)
  • CY62146CV30 - 256K x 16 Static RAM (Cypress Semiconductor)
  • CY62146E - 4-Mbit (256K x 16) Static RAM (Cypress Semiconductor)
  • CY62146ESL - 4-Mbit (256K x 16) Static RAM (Cypress Semiconductor)
  • CY62146EV30 - 4-Mbit (256K x 16) Static RAM (Cypress Semiconductor)
  • CY62146VLL-70ZI - 4M (256K x 16) Static RAM (Cypress Semiconductor)
  • CY621472E30 - 4-Mbit (256 K x 16) Static RAM (Cypress Semiconductor)
  • CY621472G - 4-Mbit (256K words x 16 bit) Static RAM (Cypress Semiconductor)
  • CY621472G30 - 4-Mbit (256K words x 16 bit) Static RAM (Cypress Semiconductor)
  • CY621472GN - 4-Mbit (256K words x 16 bit) Static RAM (Cypress Semiconductor)
Other Datasheets by Cypress
  • CY62146G - 4-Mbit (256K words x 16 bit) Static RAM
  • CY62146G-MoBL - 4-Mbit (256K words x 16 bit) Static RAM
  • CY62146GE - 4-Mbit (256K words x 16 bit) Static RAM
  • CY62146GESL - 4-Mbit (256K words x 16 bit) Static RAM
  • CY62146GN - 4-Mbit (256K x 16) Static RAM
  • CY62146GSL - 4-Mbit (256K words x 16 bit) Static RAM
  • CY62148GN - 4-Mbit (512K x 8) Static RAM
  • CY62162G - 16-Mbit (512K x 32) Static RAM

Full PDF Text Transcription

Click to expand full text
CY62146DV30 4-Mbit (256K x 16) Static RAM Features • Very high speed: 45 ns • Wide voltage range: 2.20V–3.60V • Pin-compatible with CY62146CV30 • Ultra-low active power — Typical active current: 1.5 mA @ f = 1 MHz — Typical active current: 8 mA @ f = fmax • Ultra low standby power • Easy memory expansion with CE, and OE features • Automatic power-down when deselected • CMOS for optimum speed/power • Packages offered 48-ball BGA and 44-pin TSOPII • Also available in Lead-free packages an automatic power-down feature that significantly reduces power consumption. The device can also be put into standby mode reducing power consumption by more than 99% when deselected (CE HIGH).
