CY62146E - 4-Mbit (256K x 16) Static RAM

Cypress Semiconductor

📥 Download Datasheet

CY62146E Datasheet Preview — Preview of CY62146E PDF

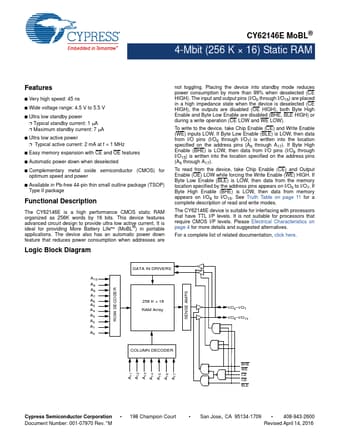

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CY62146E
Manufacturer: Cypress Semiconductor
File Size: 582.28 KB
Datasheet: CY62146E_CypressSemiconductor.pdf
Description: 4-Mbit (256K x 16) Static RAM

CY62146E Product details

Description

The CY62146E is a high performance CMOS static RAM organized as 256K words by 16 bits.

Features

Very high speed: 45 ns.
Wide voltage range: 4.5 V to 5.5 V.
Ultra low standby power.
Typical standby current: 1 A.
Maximum standby current: 7 A.
Ultra low active power.
Typical active current: 2 mA at f = 1 MHz.
Easy memory expansion with CE and OE features.
Automatic power down when deselected.
Complementary metal oxide semiconductor (CMOS) for optimum speed and power.
Available in Pb-free 44-pin thin small outline package (TSOP) Type II.
