CY62146ESL - 4-Mbit (256K x 16) Static RAM

Cypress Semiconductor

📥 Download Datasheet

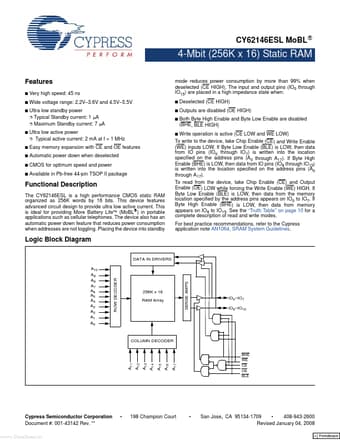

CY62146ESL Datasheet Preview — Preview of CY62146ESL PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CY62146ESL
Manufacturer: Cypress Semiconductor
File Size: 336.39 KB
Datasheet: CY62146ESL_CypressSemiconductor.pdf
Description: 4-Mbit (256K x 16) Static RAM

CY62146ESL Product details

Description

of read and write modes.

Features

Very high speed: 45 ns Wide voltage range: 2.2V.
3.6V and 4.5V.
5.5V Ultra low standby power.
Typical Standby current: 1 μA.
Maximum Standby current: 7 μA Ultra low active power.
Typical active current: 2 mA at f = 1 MHz Easy memory expansion with CE and OE features Automatic power down when deselected CMOS for optimum speed and power Available in Pb-free 44-pin TSOP II package mode reduces power consumption by more than 99% when deselected (CE HI.
