CY62146GN - 4-Mbit (256K x 16) Static RAM

Datasheet Summary

Description

The CY62146GN is a high performance CMOS static RAM organized as 256K words by 16 bits.

Features

  • Very high speed: 45 ns.
  • Temperature ranges.
  • Industrial:.
  • 40 °C to +85 °C.
  • Wide voltage range: 2.20 V to 3.60 V and 4.5 V to 5.5 V.
  • Ultra low standby power.
  • Typical standby current: 3.5 A.
  • Maximum standby current: 8.7 A.
  • Ultra low active power.
  • Typical active current: 3.5 mA at f = 1 MHz.
  • Automatic power down when deselected.
  • Complementary metal oxide semiconductor (CMOS) for optimum speed and power.
  • Available in a 44-pin TSOP.

📥 Download Datasheet

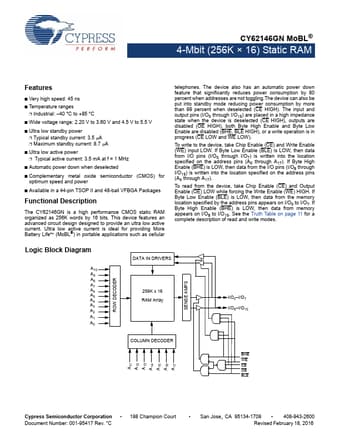

Datasheet preview – CY62146GN

Datasheet Details

Part number CY62146GN
Manufacturer Cypress
File Size 435.01 KB
Description 4-Mbit (256K x 16) Static RAM
Datasheet download datasheet CY62146GN Datasheet
Additional preview pages of the CY62146GN datasheet.

📁 Similar Datasheet

  • CY62146CV18 - 256K x 16 Static RAM (Cypress Semiconductor)
  • CY62146CV30 - 256K x 16 Static RAM (Cypress Semiconductor)
  • CY62146E - 4-Mbit (256K x 16) Static RAM (Cypress Semiconductor)
  • CY62146ESL - 4-Mbit (256K x 16) Static RAM (Cypress Semiconductor)
  • CY62146EV30 - 4-Mbit (256K x 16) Static RAM (Cypress Semiconductor)
  • CY62146VLL-70ZI - 4M (256K x 16) Static RAM (Cypress Semiconductor)
  • CY621472E30 - 4-Mbit (256 K x 16) Static RAM (Cypress Semiconductor)
  • CY621472G - 4-Mbit (256K words x 16 bit) Static RAM (Cypress Semiconductor)
  • CY621472G30 - 4-Mbit (256K words x 16 bit) Static RAM (Cypress Semiconductor)
  • CY621472GN - 4-Mbit (256K words x 16 bit) Static RAM (Cypress Semiconductor)
Other Datasheets by Cypress

Full PDF Text Transcription

Click to expand full text
CY62146GN MoBL® 4-Mbit (256K × 16) Static RAM 4-Mbit (256K × 16) Static RAM Features ■ Very high speed: 45 ns ■ Temperature ranges ❐ Industrial: –40 °C to +85 °C ■ Wide voltage range: 2.20 V to 3.60 V and 4.5 V to 5.5 V ■ Ultra low standby power ❐ Typical standby current: 3.5 A ❐ Maximum standby current: 8.7 A ■ Ultra low active power ❐ Typical active current: 3.5 mA at f = 1 MHz ■ Automatic power down when deselected ■ Complementary metal oxide semiconductor (CMOS) for optimum speed and power ■ Available in a 44-pin TSOP II and 48-ball VFBGA Packages Functional Description The CY62146GN is a high performance CMOS static RAM organized as 256K words by 16 bits. This device features an advanced circuit design designed to provide an ultra low active current.
