CY7C68000 - TX2 USB 2.0 UTMI Transceiver

Cypress Semiconductor

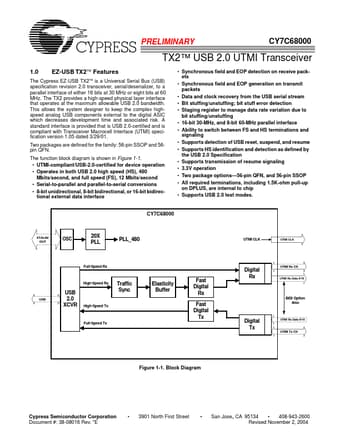

CY7C68000 Datasheet Preview — Preview of CY7C68000 PDF

Datasheet Details

Part number	CY7C68000
Manufacturer	Cypress Semiconductor
File Size	237.07 KB
Description	TX2 USB 2.0 UTMI Transceiver
Datasheet	CY7C68000_CypressSemiconductor.pdf

CY7C68000 Product details

Description

Normal operation Non-driving Disable Bit Stuffing and NRZI encoding Reserved TX2 has an on-chip oscillator circuit that uses an external 24MHz (±100-ppm) crystal with the following characteristics: Parallel resonant Fundamental mode 500-µW drive level 27 33 pF (5% tolerance) load capacitors.

Features

The Cypress EZ-USB TX2 is a Universal Serial Bus (USB) specification revision 2.0 transceiver, serial/deserializer, to a parallel interface of either 16 bits at 30 MHz or eight bits at 60 MHz. The TX2 provides a high-speed physical layer interface that operates at the maximum allowable USB 2.0 bandwidth. This allows the system designer to keep the complex highspeed analog USB components external to the digital ASIC which decreases development time and associated risk. A standard interface is pr.
