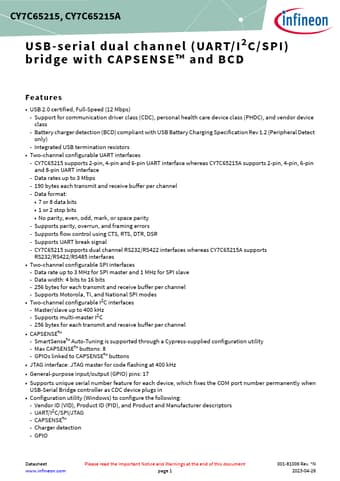

CY7C65215 Datasheet Preview — Preview of CY7C65215 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CY7C65215
Manufacturer: Infineon ↗
File Size: 781.68 KB
Datasheet: CY7C65215-Infineon.pdf
Description: USB-serial dual-channel bridge

CY7C65215 Product details

Features

USB 2.0 certified, Full-Speed (12 Mbps) - Support for communication driver class (CDC), personal health care device class (PHDC), and vendor device class - Battery charger detection (BCD) compliant with USB Battery Charging Specification Rev 1.2 (Peripheral Detect only) - Integrated USB termination resistors.
Two-channel configurable UART interfaces - CY7C65215 supports 2-pin, 4-pin and 6-pin UART interface whereas CY7C65215A supports 2-pin, 4-pin, 6-pin and 8-pin UART interfa.
