CY7C68014A, CY7C68013A Datasheet - Cypress Semiconductor

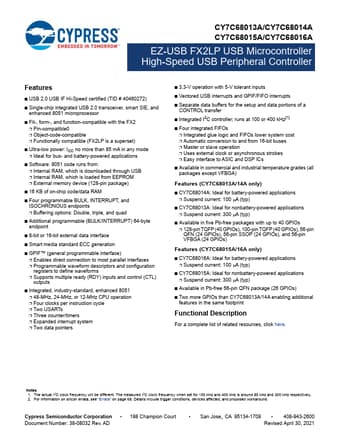

CY7C68014A High-Speed USB Peripheral Controller

For a complete list of related resources, click here. Notes 1. The actual I2C clock frequency will be different. The measured I2C clock frequency when set for 100 kHz and 400 kHz is around 85 kHz and 300 kHz respectively. 2. For information on silicon errata, see “Errata” on page 68. Details includ.

CY7C68014A Features

* USB 2.0 USB IF Hi-Speed certified (TID # 40460272)

* Single-chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor

* Fit-, form-, and function-compatible with the FX2

* Pin-compatible0

* Object-code-compatible

* Functionally compatible (FX2LP is a

CY7C68013A_CypressSemiconductor.pdf

CY7C68014A Datasheet Preview — This datasheet PDF includes multiple part numbers: CY7C68014A, CY7C68013A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CY7C68014A, CY7C68013A

Manufacturer:

Cypress Semiconductor

File Size:

845.92 KB

Description:

High-speed usb peripheral controller.

Note:

This datasheet PDF includes multiple part numbers: CY7C68014A, CY7C68013A.
Please refer to the document for exact specifications by model.
