CY7C68015A, CY7C68013A - High-Speed USB Peripheral Controller

Cypress Semiconductor

Datasheet Details

Part number	CY7C68015A, CY7C68013A
Manufacturer	Cypress Semiconductor
File Size	845.92 KB
Description	High-Speed USB Peripheral Controller
Datasheet	CY7C68013A_CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY7C68015A, CY7C68013A. Please refer to the document for exact specifications by model.

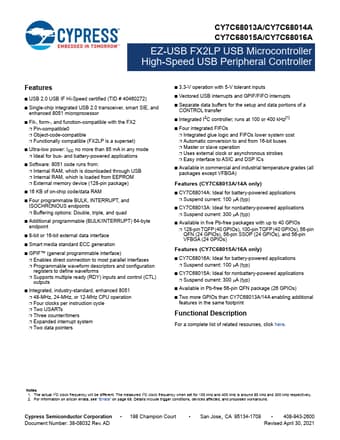

For a complete list of related resources, click here. 198 Champion Court Document Number: 38-08032 Rev. San Jose, CA 95134-1709

USB 2.0 USB IF Hi-Speed certified (TID # 40460272).
Single-chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor.
Fit-, form-, and function-compatible with the FX2.
Pin-compatible0.
Object-code-compatible.
Functionally compatible (FX2LP is a superset).
Ultra-low power: ICC no more than 85 mA in any mode.
Ideal for bus- and battery-powered.
