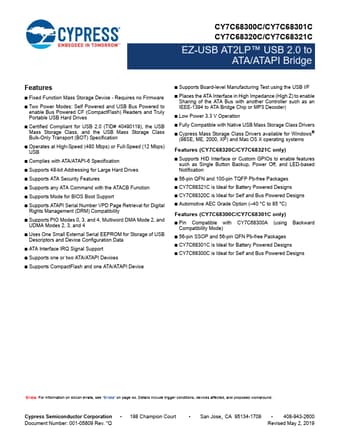

CY7C68321C USB 2.0 to ATA/ATAPI Bridge

9 Additional Pin Descriptions 13 HID Functions for Button Controls 16 Functional Overview 16 USB Signaling Speed 16 ATA Interface 16 Operating Modes 19 Operational Mode Selection Flow 19 Fused Memory Data 20 Normal Mass Storage Mode 20 Board Manufacturing Test Mode .

CY7C68321C Features

* Fixed Function Mass Storage Device - Requires no Firmware

* Two Power Modes: Self Powered and USB Bus Powered to enable Bus Powered CF (CompactFlash) Readers and Truly Portable USB Hard Drives

* Certified Compliant for USB 2.0 (TID# 40490119), the USB Mass Storage Class, and the USB Ma

CY7C68300C-CypressSemiconductor.pdf

CY7C68321C Datasheet Preview — This datasheet PDF includes multiple part numbers: CY7C68321C, CY7C68300C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CY7C68321C, CY7C68300C

Manufacturer:

Cypress Semiconductor

File Size:

560.77 KB

Description:

Usb 2.0 to ata/atapi bridge.

Note:

This datasheet PDF includes multiple part numbers: CY7C68321C, CY7C68300C.
Please refer to the document for exact specifications by model.

📁 Related Datasheet

CY7C68321 (CY7C68300B / CY7C68301B / CY7C68320 / CY7C68321) EZ-USB AT2LPTM USB 2.0 to ATA/ATAPI Bridge (Cypress Semiconductor)

CY7C68320 (CY7C68300B / CY7C68301B / CY7C68320 / CY7C68321) EZ-USB AT2LPTM USB 2.0 to ATA/ATAPI Bridge (Cypress Semiconductor)

CY7C68320C USB 2.0 to ATA/ATAPI Bridge (Cypress Semiconductor)

CY7C68300 EZ-USB AT2 USB 2.0 to ATA/ATAPI Bridge (Cypress Semiconductor)

CY7C68300B (CY7C68300B / CY7C68301B / CY7C68320 / CY7C68321) EZ-USB AT2LPTM USB 2.0 to ATA/ATAPI Bridge (Cypress Semiconductor)

CY7C68300C USB 2.0 to ATA/ATAPI Bridge (Cypress Semiconductor)

CY7C68301B (CY7C68300B / CY7C68301B / CY7C68320 / CY7C68321) EZ-USB AT2LPTM USB 2.0 to ATA/ATAPI Bridge (Cypress Semiconductor)

CY7C68301C USB 2.0 to ATA/ATAPI Bridge (Cypress Semiconductor)
