CY7C68321, CY7C68300B, (CY7C68300B / CY7C68301B / CY7C68320 / CY7C68321) EZ-USB AT2LPTM USB 2.0 to ATA/ATAPI Bridge

www.DataSheet4U.com CY7C68300B/CY7C68301B CY7C68320/CY7C68321 EZ-USB AT2LP™ USB 2.0 to ATA/ATAPI Bridge 1.0 .
between the 68300B/01B and 68320/321 pinouts for the 56pin packages.

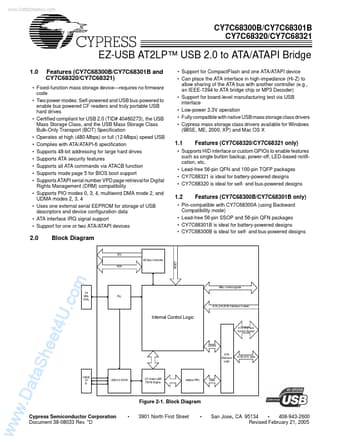

datasheet Preview Page 1 from Datasheet4u.com

CY7C68300B_CypressSemiconductor.pdf

CY7C68321 Datasheet Preview — This datasheet PDF includes multiple part numbers: CY7C68321, CY7C68300B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CY7C68321, CY7C68300B

Manufacturer:

Cypress Semiconductor

File Size:

524.53 KB

Description:

(CY7C68300B / CY7C68301B / CY7C68320 / CY7C68321) EZ-USB AT2LPTM USB 2.0 to ATA/ATAPI Bridge

Note:

This datasheet PDF includes multiple part numbers: CY7C68321, CY7C68300B.
Please refer to the document for exact specifications by model.

Features

* (CY7C68300B/CY7C68301B and CY7C68320/CY7C68321)
* Support for CompactFlash and one ATA/ATAPI device
* Can place the ATA interface in high-impedance (Hi-Z) to allow sharing of the ATA bus with another controller (e. g. , an IEEE-1394 to ATA bridge chip or MP3 Decoder)
* Support

Applications

* mass storage device ports. This bridge adheres to the Mass Storage Class Bulk-Only Transport Specification and is intended for bus- and self-powered devices. The AT2LP is the latest addition to the Cypress USB mass storage portfolio, and is an ideal cost- and power-reduction path for designs that pr
