CY7C1011G - 2-Mbit (128K words x 16 bit) Static RAM

Datasheet Summary

Description

CY7C1011G is a high-performance CMOS fast static RAM automotive part with embedded ECC.

This device has a single Chip Enable (CE) input, and is accessed by asserting it LOW.

Features

  • High speed.
  • tAA = 10 ns.
  • Temperature range.
  • Automotive-A:.
  • 40 °C to 85 °C.
  • Automotive-E:.
  • 40 °C to 125 °C.
  • Embedded correction[1] error-correcting code (ECC) for single-bit error.
  • Low active and standby current.
  • Active current, ICC = 40-mA typical (Automotive-E).
  • Standby current, ISB2 = 6-mA typical (Automotive-E).
  • Operating voltage range: 2.2 V to 3.6 V.
  • 1.0-V data retention.
  • TTL compatible inputs and outp.

📥 Download Datasheet

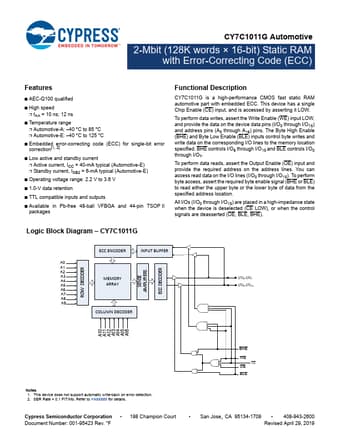

Datasheet preview – CY7C1011G

Datasheet Details

Part number CY7C1011G
Manufacturer Cypress
File Size 406.16 KB
Description 2-Mbit (128K words x 16 bit) Static RAM
Datasheet download datasheet CY7C1011G Datasheet
Additional preview pages of the CY7C1011G datasheet.

📁 Similar Datasheet

  • CY7C1011BV33 - 128K x 16 Static RAM (Cypress Semiconductor)
  • CY7C1011CV33 - 128K x 16 Static RAM (Cypress Semiconductor)
  • CY7C1011DV33 - 2-Mbit (128K x 16)Static RAM (Cypress Semiconductor)
  • CY7C1010DV33 - 2-Mbit (256 K x 8) Static RAM (Cypress Semiconductor)
  • CY7C1012AV33 - 512K x 24 Static RAM (Cypress Semiconductor)
  • CY7C1018DV33 - 1-Mbit (128 K x 8) Static RAM (Cypress Semiconductor)
  • CY7C1018V33 - 128K x 8 Static RAM (Cypress Semiconductor)
  • CY7C10191B - 128K x 8 Static RAM (Cypress Semiconductor)
  • CY7C1019B - 128K x 8 Static RAM (Cypress Semiconductor)
  • CY7C1019CV33 - 1-Mbit (128 K x 8) Static RAM (Cypress Semiconductor)
Other Datasheets by Cypress
  • CY7C1006D - 1-Mbit (256K x 4) Static RAM
  • CY7C1041G - 4-Mbit (256K words x 16 bit) Static RAM
  • CY7C1041GE - 4-Mbit (256K words x 16 bit) Static RAM
  • CY7C1041GN - 4-Mbit (256K words x 16 bit) Static RAM
  • CY7C1049GN - 4-Mbit (512K words x 8 bit) Static RAM
  • CY7C1061DV33 - 16-Mbit (1 M X 16) Static RAM
  • CY7C1061G - 16-Mbit (1 M words x 16 bit) Static RAM
  • CY7C106D - 1-Mbit (256K x 4) Static RAM

Full PDF Text Transcription

Click to expand full text
CY7C1011G Automotive 2-Mbit (128K words × 16 bit) Static RAM with Error-Correcting Code (ECC) 2-Mbit (128K words × 16 bit) Static RAM with Error-Correcting Code (ECC) Features ■ High speed ❐ tAA = 10 ns ■ Temperature range ❐ Automotive-A: –40 °C to 85 °C ❐ Automotive-E: –40 °C to 125 °C ■ Embedded correction[1] error-correcting code (ECC) for single-bit error ■ Low active and standby current ❐ Active current, ICC = 40-mA typical (Automotive-E) ❐ Standby current, ISB2 = 6-mA typical (Automotive-E) ■ Operating voltage range: 2.2 V to 3.6 V ■ 1.0-V data retention ■ TTL compatible inputs and outputs ■ Available in Pb-free 48-ball VFBGA and 44-pin TSOP II packages Functional Description CY7C1011G is a high-performance CMOS fast static RAM automotive part with embedded ECC.
