CY9BF416T 32-bit FM3 Microcontroller

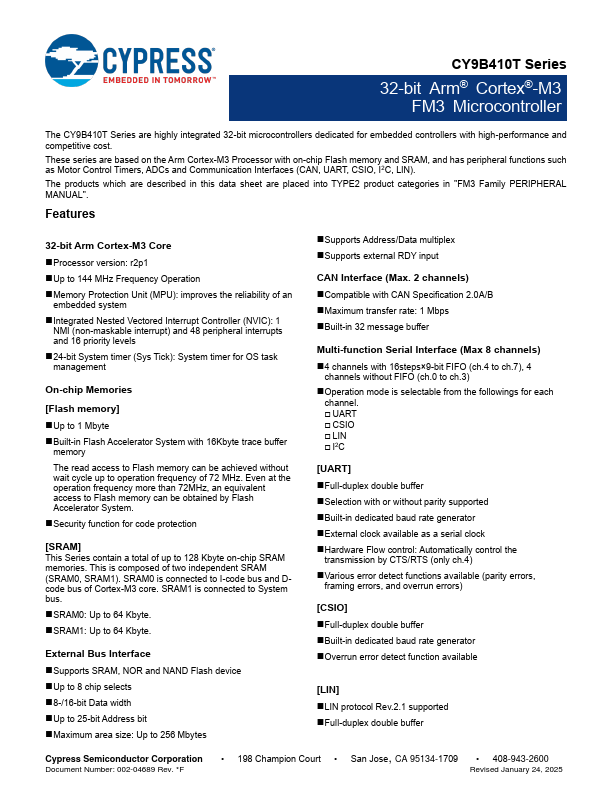

CY9B410T Series 32-bit Arm® Cortex®-M3 FM3 Microcontroller The CY9B410T Series are highly integrated 32-bit microcontrollers dedicated for embedded controllers with high-performance and competitive cost. These series are based on the Arm Cortex-M3 Processor with on-chip Flash memory and SRAM, and has peripheral functions such as Motor Control Timers, ADCs and Communication Interfaces (CAN, UART, CSIO, I2C, LIN). The products which are described in this data sheet are placed into TYPE2 product c.

CY9BF416T Features

* 32-bit Arm Cortex-M3 Core

* Processor version: r2p1

* Up to 144 MHz Frequency Operation

* Memory Protection Unit (MPU): improves the reliability of an embedded system

* Integrated Nested Vectored Interrupt Controller (NVIC): 1 NMI (non-maskable interrupt) and 48 peripheral interrupts an

CY9BF416S-Cypress.pdf

CY9BF416T Datasheet Preview — This datasheet PDF includes multiple part numbers: CY9BF416T, CY9BF416S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CY9BF416T, CY9BF416S

Manufacturer:

Cypress

File Size:

1.68 MB

Description:

32-bit fm3 microcontroller.

Note:

This datasheet PDF includes multiple part numbers: CY9BF416T, CY9BF416S.
Please refer to the document for exact specifications by model.
