CY9BF417T, CY9BF416S - 32-bit FM3 Microcontroller

Cypress

Datasheet Details

Part number	CY9BF417T, CY9BF416S
Manufacturer	Cypress
File Size	1.68 MB
Description	32-bit FM3 Microcontroller
Datasheet	CY9BF416S-Cypress.pdf
Note	This datasheet PDF includes multiple part numbers: CY9BF417T, CY9BF416S. Please refer to the document for exact specifications by model.

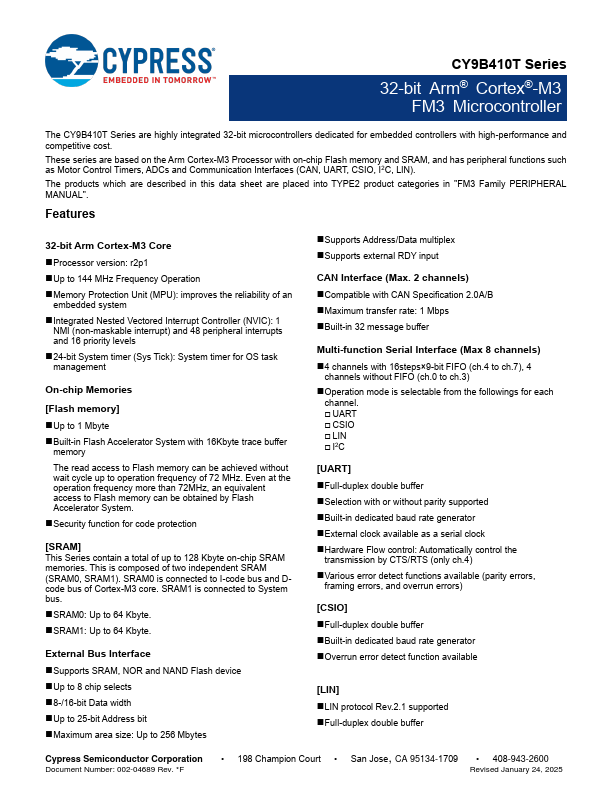

32-bit Arm Cortex-M3 Core.
Processor version: r2p1.
Up to 144 MHz Frequency Operation.
Memory Protection Unit (MPU): improves the reliability of an embedded system.
Integrated Nested Vectored Interrupt Controller (NVIC): 1 NMI (non-maskable interrupt) and 48 peripheral interrupts and 16 priority levels.
24-bit System timer (Sys Tick): System timer for OS task management On-chip Memories [Flash memory].
Up to 1 Mbyte.
Built-in Flash Accelerator System with 16Kbyte tra.
