MTD011N10RJ3 N-Channel Enhancement Mode Power MOSFET

MTD011N10RJ3 Description

CYStech Electronics Corp.N-Channel Enhancement Mode Power MOSFET MTD011N10RJ3 Spec.No.: C169J3 Issued Date : 2016.07.27 Revised Date : Page No.: .

MTD011N10RJ3 Features

* Low On Resistance
* Simple Drive Requirement
* Low Gate Charge
* Fast Switching Characteristic
* Pb-free lead plating and halogen-free package BVDSS ID@VGS=10V, TC=25°C ID@VGS=10V, TA=25°C RDS(ON)@VGS=10V, ID=11A RDS(ON)@VGS=6V, ID=6A 100V 48A 10.6A 8.4 mΩ

📥 Download Datasheet

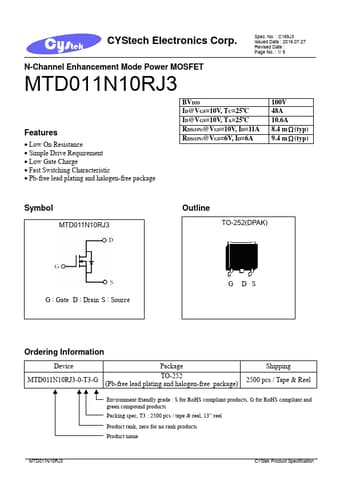

Preview of MTD011N10RJ3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MTD011N10RJ3
Manufacturer
Cystech Electonics
File Size
364.65 KB
Datasheet
MTD011N10RJ3-CystechElectonics.pdf
Description
N-Channel Enhancement Mode Power MOSFET
