PL2576-xxxF5

Simple Switcher 3A Step- Down Voltage Regulator

PL2576-xxxF5 Features

* 3.3V, 5V, 12V, 15V, and adjustable output versions. Adjustable version output voltage range, 1.23V to 37V±4% max over line and load conditions. Guaranteed 3A output current. Wide input voltage range. Requires only 4 external components 52 kHz fixed frequency oscillator TTL shutdown capability, low p

PL2576-xxxF5 General Description

The PL2576-XXXF5 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving 3A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, 15V, a.

PL2576-xxxF5 Datasheet (249.51 KB)

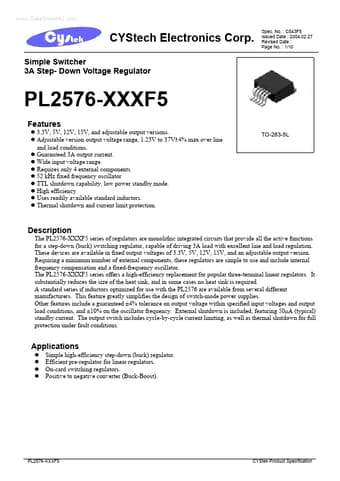

Preview of PL2576-xxxF5 PDF

Datasheet Details

Part number:

PL2576-xxxF5

Manufacturer:

Cystech Electonics

File Size:

249.51 KB

Description:

Simple switcher 3a step- down voltage regulator.
www.DataSheet4U.com CYStech Electronics Corp. Simple Switcher 3A Step- Down Voltage Regulator Spec. No. : C543F5 Issued Date : 2004.02.27 Revised Da.
