PL2543 Datasheet - Prolific

PL2543 USB 2.0 to 4-Port UART Controller

0.1 Initial release * Removed description * -On-chip clock generator is optional - Driver support of Windows Server 2008 0.2 -Note#2, 3.3, 3.4 in Table 7-6 -Per TBD standard in Table 9-1 * -Changed VDD50 as VIN * Minimum Baud rate change from 1 to 5bps * Added pins 6 .
USB 2.0 to 4-Port UART Controller Product Data Sheet PL2543 PL2543 USB 2.0 to 4-port Full UART Controller USB Interface Fully compliant with USB 2.0 specification USB-IF certified TID 6180 Royalty-free USB to Virtual COM Port drivers for Windows, Mac, Linux, and Android UHCI/OHCI (USB1.1), EHCI (USB2.0), and Xhci (USB3) host controller compatible Highly integrated USB 2.0 High-Speed and Full-speed transceiver with built-in pull-up resistor and reference resistor.

PL2543 Datasheet (663.17 KB)

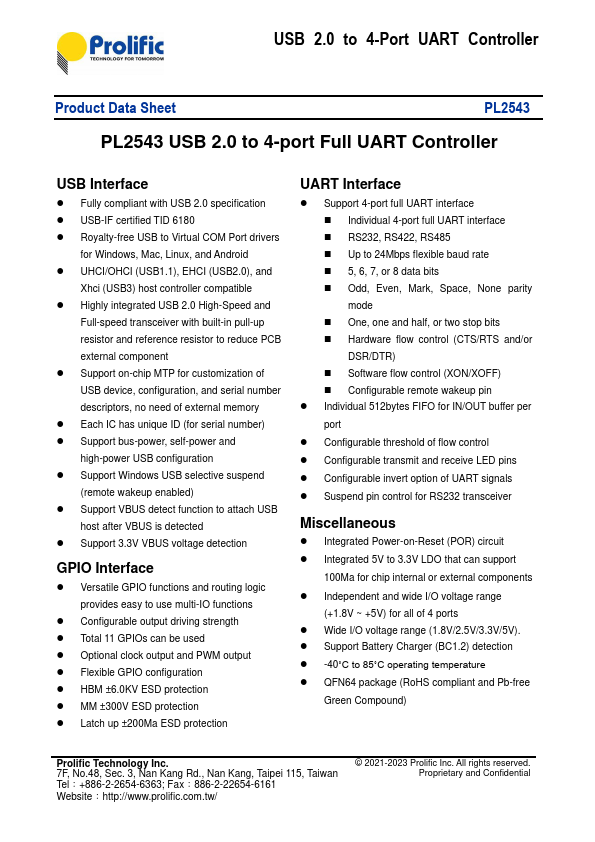

Preview of PL2543 PDF

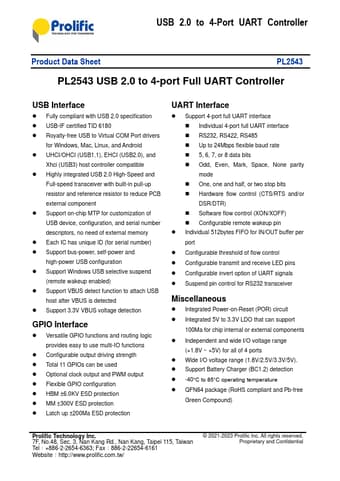

PL2543 Datasheet Preview Page 2 PL2543 Datasheet Preview Page 3

Datasheet Details

Part number:

PL2543

Manufacturer:

Prolific

File Size:

663.17 KB

Description:

Usb 2.0 to 4-port uart controller.
