PL2523 Datasheet - Prolific

PL2523 USB 2.0 to 2-Port UART Controller

Date 2022-11-7 Prolific Technology Inc. 7F, No.48, Sec. 3, Nan Kang Rd., Nan Kang, Taipei 115, Taiwan Tel：+886-2-2654-6363; Fax：886-2-22654-6161 Website：http://www.prolific.com.tw/ © 2022 Prolific Inc. All rights reserved. Proprietary and Confidential USB 2.0 to 2-Port UART Controller Product D.
USB 2.0 to 2-Port UART Controller Product Data Sheet PL2523 PL2523 USB 2.0 to 2-port Full UART Controller USB Interface Fully compliant with USB 2.0 specification USB-IF certified TID 6180 Royalty-free USB to Virtual COM Port drivers for Windows, Mac, Linux, and Android UHCI/OHCI (USB1.1), EHCI (USB2.0), and xHCI (USB3) host controller compatible Highly integrated USB 2.0 High-Speed and Full-speed transceiver with built-in pull-up resistor and reference resistor.

PL2523 Datasheet (883.11 KB)

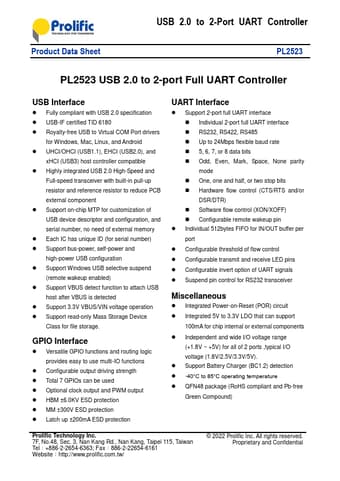

Preview of PL2523 PDF
PL2523 Datasheet Preview Page 2 PL2523 Datasheet Preview Page 3

Datasheet Details

Part number:

PL2523

Manufacturer:

Prolific

File Size:

883.11 KB

Description:

Usb 2.0 to 2-port uart controller.
