PL2503 Datasheet - Prolific

PL2503 Hi-Speed USB to Serial Bridge Controller

9 4.1 USB2.0 PHY Related Pins9 4.2 UART Related Pins 9 4.3 SPI Flash Pins 9 4.4 GPIO Pins 10 4.5 System Pins 10 5. USB to RS232 Application Example 11 6. Device Configuration 12 7. Link Status LED 14 8. Data Formats and Baud Rate Table .

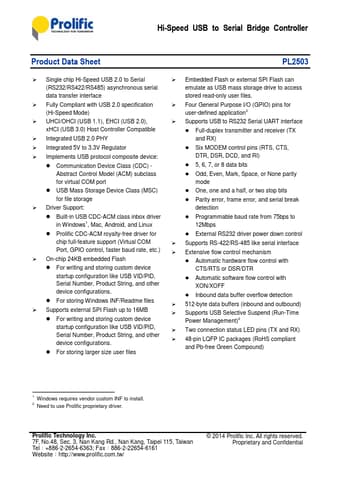

Hi-Speed USB to Serial Bridge Controller Product Data Sheet PL2503 Single chip Hi-Speed USB 2.0 to Serial (RS232/RS422/RS485) asynchronous serial data transfer interface Fully Compliant with USB 2.0 specification (Hi-Speed Mode) UHCI/OHCI (USB 1.1), EHCI (USB 2.0), xHCI (USB 3.0) Host Controller Compatible Integrated USB 2.0 PHY Integrated 5V to 3.3V Regulator Implements USB protocol composite device: Communication Device Class (CDC) Abstract Control .
