DAC-HZ12BGC - Industry-Standard Digital-to-Analog Converters

DATEL

The DAC-HZ12BGC by DATEL is a Industry-Standard Digital-to-Analog Converters. Below is the official datasheet preview.

📥 Download Datasheet

DAC-HZ12BGC Industry-Standard Digital-to-Analog Converters by DATEL - Datasheet Preview — Official preview page of the **DAC-HZ12BGC** Industry-Standard Digital-to-Analog Converters datasheet (DATEL).

Datasheet Details

Part number	DAC-HZ12BGC
Manufacturer	DATEL
File Size	277.53 KB
Description	Industry-Standard Digital-to-Analog Converters
Datasheet	DAC-HZ12BGC-DATEL.pdf

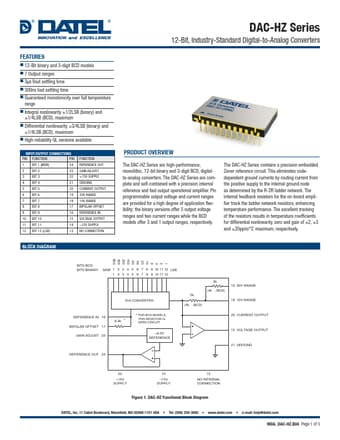

Additional preview pages of the DAC-HZ12BGC datasheet.

DAC-HZ12BGC Product details

Description

INPUTS Resolution Coding, Unipolar Output Coding, Bipolar Output Input Logic Level, Bit ON ("0") Input Logic Level, Bit OFF ("0") Logic Loading DAC-HZ12B (BINARY) DAC-HZ12D (BCD) 12 binary bits 3 BCD digits Comp.binary Comp.BCD Comp.off.binary 0V to +0.8V at 1mA +2.4V to +5.5V at +40μA 1 TTL load PERFORMANCE ➀ Voltage Output Nonlinearity Differential Nonlinearity Gain Error, Before Trimming Zero Error, Before Trimming Gain Tempco, maximum Zero Tempco, Unipolar,

Features

12-Bit binary and 3-digit BCD models.
7 Output ranges.
3μs Vout settling time.
300ns Iout settling time.
Guaranteed monotonicity over full temperature range.
Integral nonlinearity ±1/2LSB (binary) and ±1/4LSB (BCD), maximum.
Differential nonlinearity ±3/4LSB (binary) and ±1/4LSB (BCD), maximum.
High-reliability QL versions available INPUT/OUTPUT.
