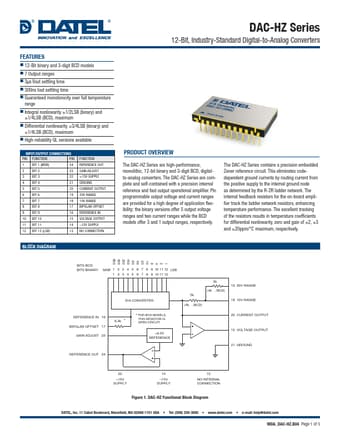

DAC-HZ12BMC - Industry-Standard Digital-to-Analog Converters
INPUTS Resolution Coding, Unipolar Output Coding, Bipolar Output Input Logic Level, Bit ON ("0") Input Logic Level, Bit OFF ("0") Logic Loading DAC-HZ12B (BINARY) DAC-HZ12D (BCD) 12 binary bits 3 BCD digits Comp.
binary Comp.
BCD Comp.
off.
binary * 0V to +0.8V at *1mA +2.4V
DAC-HZ12BMC Features
* 12-Bit binary and 3-digit BCD models
* 7 Output ranges
* 3μs Vout settling time
* 300ns Iout settling time
* Guaranteed monotonicity over full temperature range
* Integral nonlinearity ±1/2LSB (binary) and ±1/4LSB (BCD), maximum
* Differentia
